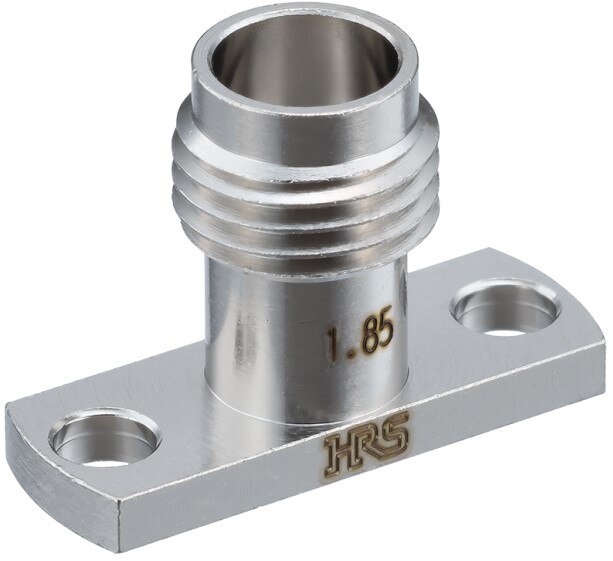

            1.85 mmWave (HV) Field Replaceable Series Connectors
                    Hirose Electric 1.85 mm (HV) series high-frequency field replaceable connectors support up to 71 GHz frequency


Hirose Electric 1.85 mm (HV) series connectors are designed for mmWave applications. The high-performance, field-replaceable coaxial connector supports frequencies up to 71 GHz, ensuring efficient data transmission. The innovative field-replaceable design allows easy removal without disturbing internal module components, simplifying maintenance and upgrades. Compliant with IEC and RoHS2 standards, 1.85 mm series connectors deliver durable, environmentally safe performance. They provide dependable performance in demanding environments, making them perfect for RF modules like splitters, mixers, amplifiers, transmission, radio communication, and measuring instruments.

Features

IEC standard compliant 1.85 mm coaxial connector (IEC 61169-32)
Supports up to 71 GHz frequency
Screw mounting

Provides excellent high-frequency performance and consistent mounting quality
Reusable (30 times)
Reduces mounting complexity (no soldering is required)

Complies with IEC standard
Flexible PCB thickness
0.085 inch flexible cable applicable
Terminators and attenuators also available
RoHS2 compliant

1.85 mm Wave (HV) Field Replaceable Series

	圖片	製造商零件編號	說明	現有數量	價格	查看詳情
		HV-R-FR2(12.22)	RECEPTACLE, 1 POS., 71.0 GHZ, -5	19 - 即時供貨	$476.14	查看詳情
		HV-R-FR2(10.16)	RECEPTACLE, 1 POS., 71.0 GHZ, -5	0 - 即時供貨	$473.42	查看詳情
