Remote Control Infrared Receivers Slide 13

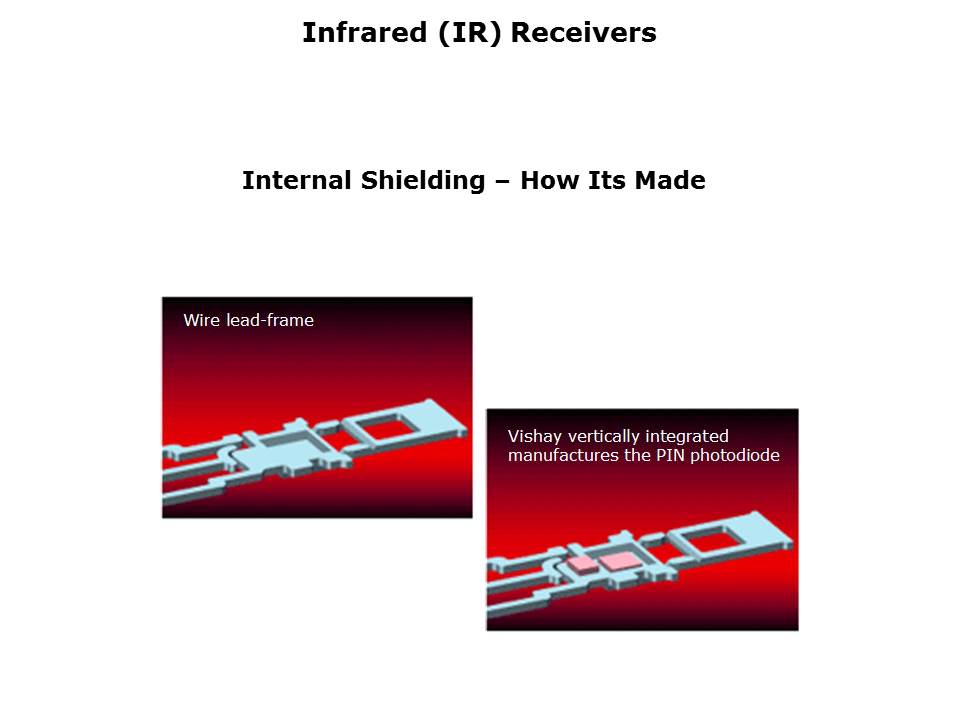

The manufacturing process for the through-hole IR receiver begins with a wire lead frame. Vishay attaches a PIN photo diode to the lead frame followed by an ASIC which automatically adjusts the gain and demodulates the signal. To ensure quality, Vishay manufactures all photo diodes used in their IR Receivers.
