TEA91a

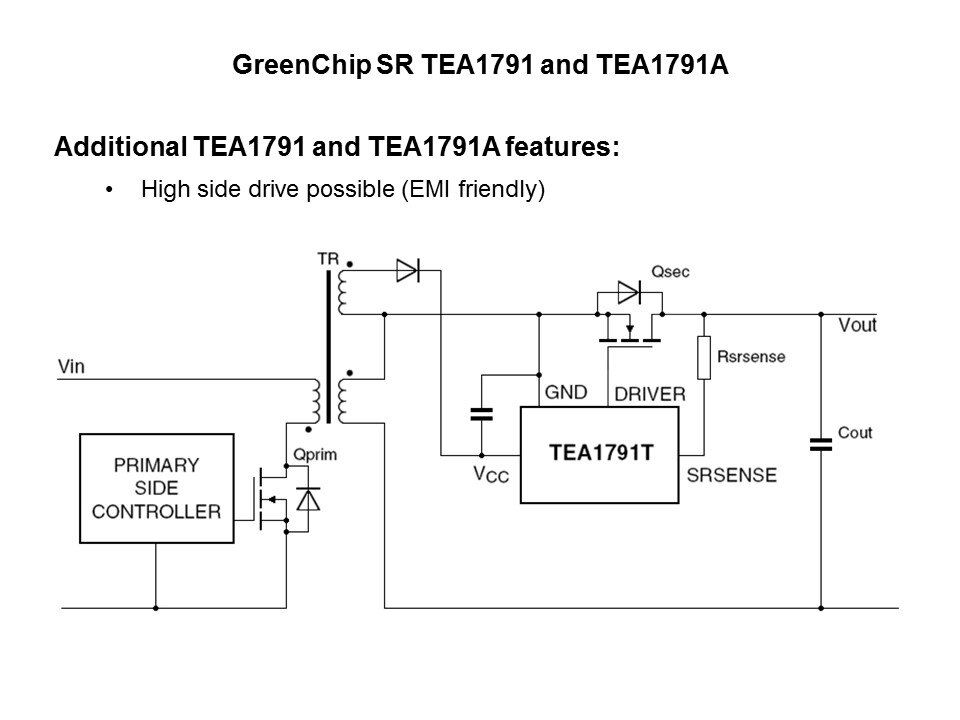

Shown on this slide is the TEA1791 in a typical SR high side application. NXP GreenChip SR ICs require no external components for tuning parameters to the SR application, making the application design easy. The TEA1791 and TEA1791A can be used in a high-side configuration, which ensures better EMI performance when using a standard transformer.
PTM Published on: 2012-06-29
