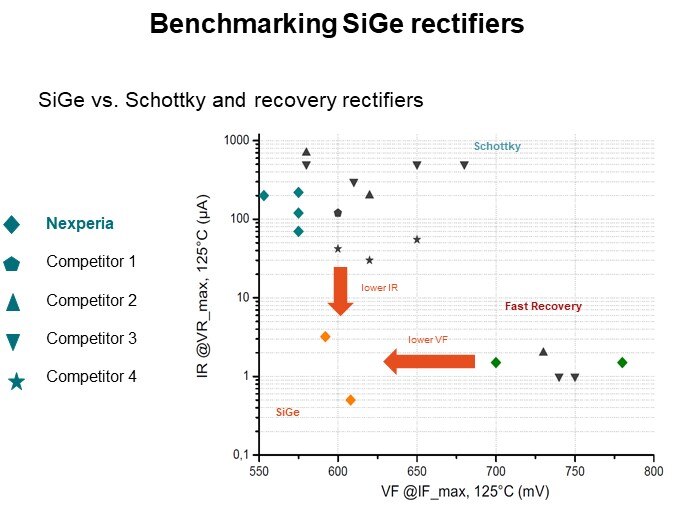

Benchmarking SiGe rectifiers

Now, let’s verify the rather theoretical picture from the last slide by looking into published datasheet parameters. We show three groups of products: Schottky rectifiers, Fast Recovery rectifiers, and Silicon Germanium rectifiers. Again, you can see the trade-off between forward voltage and leakage current, in this case at 125°C junction temperature. The Silicon Germanium value proposition still holds when looking at the real part-to-part comparison.
