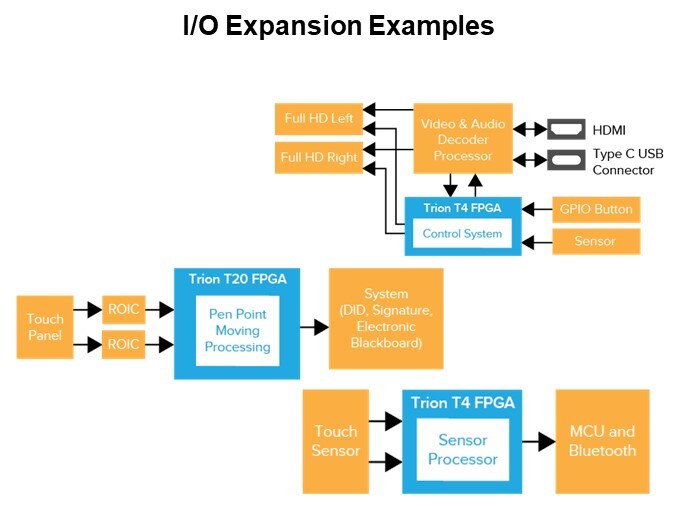

I/O Expansion Examples

Highlighted here are a number of control applications examples where the Trion® devices are interfacing to various types of sensors or other various inputs. Algorithms in the FPGA process the sensor data, along with other information from other of those various inputs. These various control application examples involve inputs like gyro/accelerometer/touch and other inputs, FPGA algorithms then compute results and send those results to the video processors, controllers or other sub-processing units if localized processing is not enough.
