DIN-Rails-Slide19

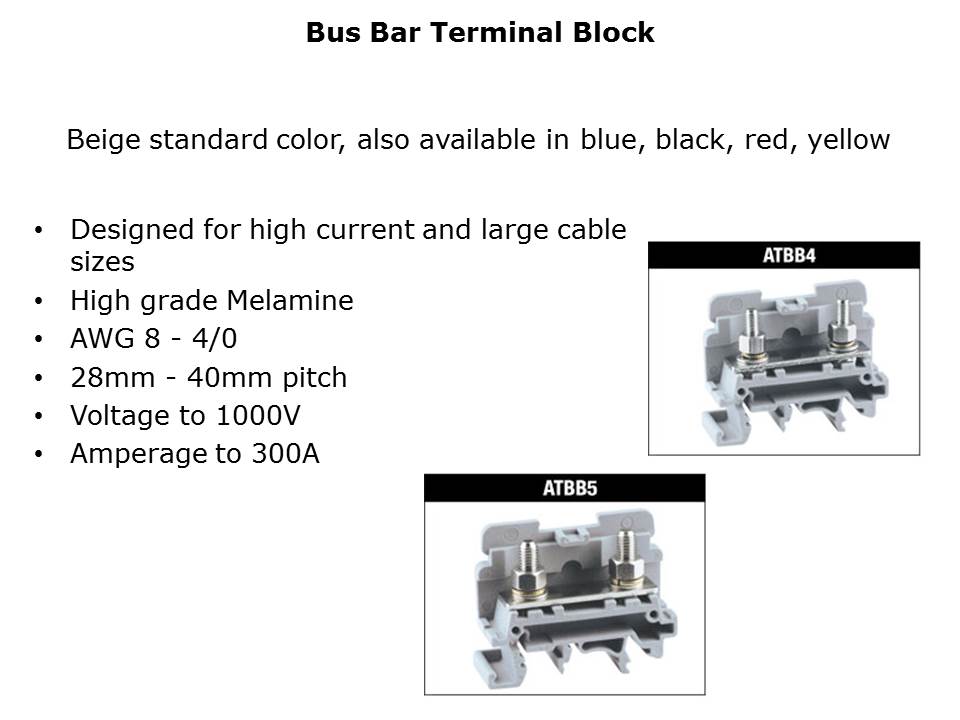

Bus bar terminal blocks are designed for applications involving high currents and large cable sizes. Wires are crimped into ring type compression terminals and installed on the current bar of the terminal block. Bus bar blocks are available in wire gauges of 8-4/0 AWG with a pitches ranging from 28mm – 40mm. Voltage ratings are up to 1000V and current ratings are up to 300A. Please check customer drawings or website for VDE and STQC approval.

PTM Published on: 2011-06-29
