ZipLine Connector System Slide 8

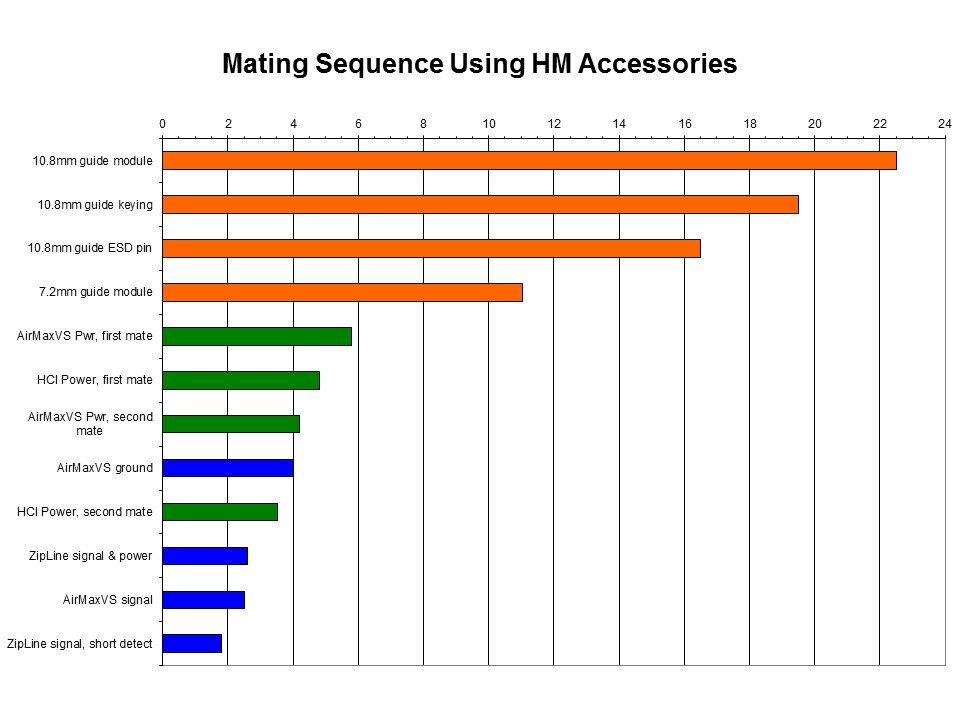

Sequential mating of ground, power and signal contacts is often needed when daughter cards are plugged to a backplane. This chart shows the nominal mating pin wipe lengths for various ZipLine™, AirMaxVS, power, and guide modules that may be used together in an application.
