ZipLine Connector System Slide 11

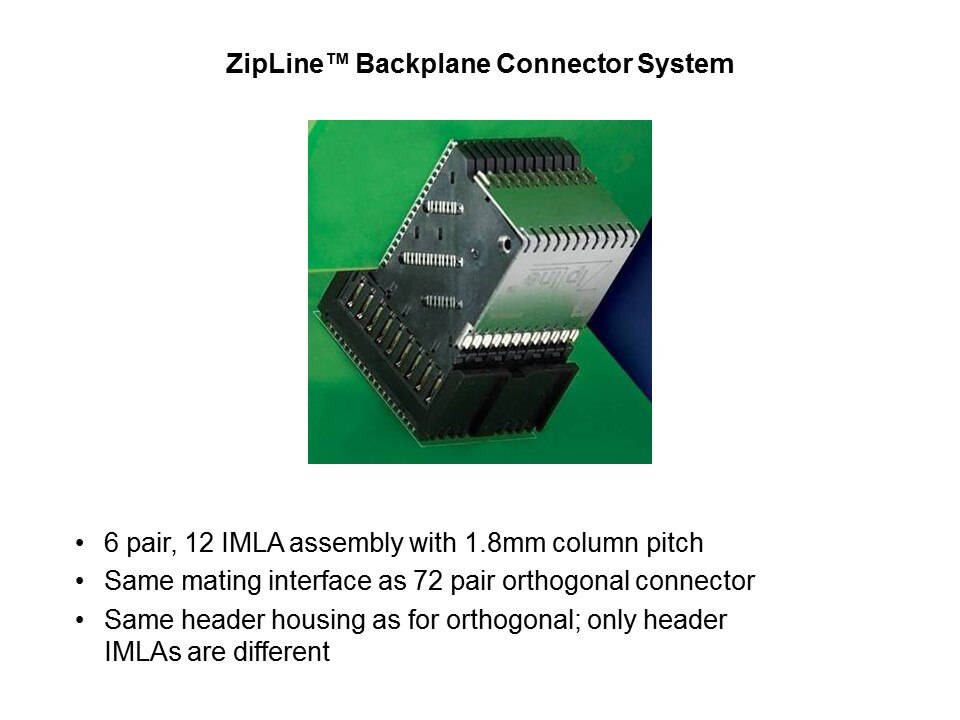

The standard ZipLine™ 6 pair, 12 IMLA backplane connector consists of a housing loaded with header contact IMLAs.  Both standard and orthogonal headers have identical mating interfaces. The only difference between the headers is the configuration of the press-fit tails that terminate to the printed circuit board. The housing controls the separation of the IMLA columns.
