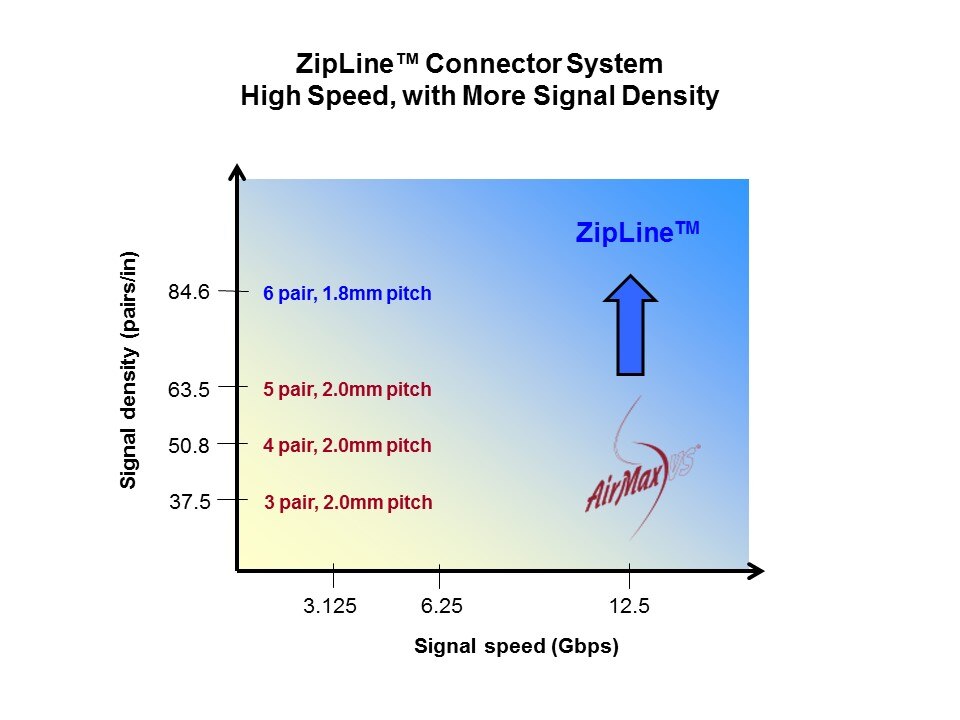

ZipLine Connector System Slide 2
The ZipLine™ connector system uses the proven shield-less technology pioneered with FCI AirMax VS® connectors to deliver low insertion loss and crosstalk at data rates up to 12.5Gb/s. By reducing the column pitch and increasing the pin count per column, ZipLine connectors are the first high-performance backplane connectors to achieve signal density of 84.6 differential pairs per linear inch of board edge.
PTM Published on: 2011-10-13
