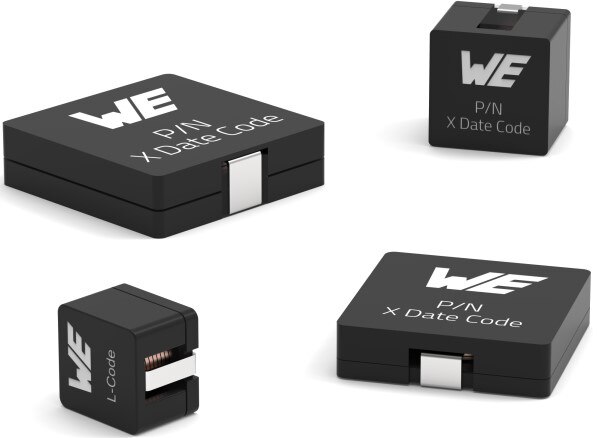

WE-HCI – SMD Flat Wire High-Current Inductor
Würth Elektronik offers WE-HCI high-current storage inductors for high-efficiency DC/DC switching regulators
Würth Elektronik's WE-HCI series is known within the electronics market to be a top of the line, high-current inductor family. Due to increased demand for smaller packages in even higher currents, Würth Elektronik offers numerous sizes ranging from 5.5 mm x 5.3 mm x 4 mm up to 22.5 mm x 22.0 mm x 12.0 mm, thus allowing customers to find the optimum size for their circuit designs. The high-current flat wire inductors offer some of the industry's lowest DCRs for maximum performance in DC/DC converters. The family contains a broad range of inductance values from 0.22 µH up to 82 µH with currents up to 41.5 A. For reference, at 10 µH the inductor has 21 A rated current and 26 A before it starts to saturate. This means that even driving the part at its max temperature, it still delivers the full inductance and only has a DCR of 3.4 mΩ.
- Magnetically shielded
- Flat wire coil for low losses at high frequency
- Low stray field
- Operating temperature: -40°C to +125°C / +150°C / +155°C
- Recommended solder profile: reflow
- AEC-Q200 qualified
- Graphics cards
- Laptops
- Industrial computers
- Motherboards
- High-current switching regulators
- DC/DC converters
- Polyphase-switching regulators
- Filters
Application Notes
WE-HCI Series
| Image | Manufacturer Part Number | Description | Available Quantity | Price | ||
|---|---|---|---|---|---|---|
 |  | 744316220 | FIXED IND 2.2UH 7.5A 11.3MOHM SM | 9178 - Immediate | $22.39 | View Details |
| | 744316047 | FIXED IND 470NH 15A 2.75MOHM SMD | 4587 - Immediate | $22.39 | View Details |
| | 744316330 | FIXED IND 3.3UH 5.75A 18.5 MOHM | 4114 - Immediate | $22.39 | View Details |
| | 744316100 | FIXED IND 1UH 11.5A 4.75MOHM SMD | 3193 - Immediate | $22.39 | View Details |
|  | 7443552560 | FIXED IND 5.6UH 6.7A 20.6MOHM SM | 6715 - Immediate | $26.10 | View Details |
|  | 7443551221 | FIXED IND 22UH 6A 24.7 MOHM SMD | 7645 - Immediate | $28.65 | View Details |
|  | 7443551730 | FIXED IND 7.3UH 13A 5.9 MOHM SMD | 4966 - Immediate | $28.65 | View Details |
|  | 7443551920 | FIXED IND 9.2UH 12A 7.8 MOHM SMD | 4849 - Immediate | $28.65 | View Details |
|  | 7443551331 | FIXED IND 33UH 5.5A 30.5MOHM SMD | 3126 - Immediate | $28.65 | View Details |
|  | 7443551111 | FIXED IND 11.3UH 11A 9.1MOHM SMD | 1724 - Immediate | $28.65 | View Details |
|  | 744311470 | FIXED IND 4.7UH 6A 19.5 MOHM SMD | 9785 - Immediate | $31.28 | View Details |
|  | 744314490 | FIXED IND 4.9UH 6.5A 14.5MOHM SM | 7829 - Immediate | $31.28 | View Details |
| | 744311150 | FIXED IND 1.5UH 11A 6.6 MOHM SMD | 7068 - Immediate | $31.28 | View Details |
| | 744311100 | FIXED IND 1UH 15A 4.6 MOHM SMD | 6744 - Immediate | $31.28 | View Details |
|  | 744314024 | FIXED IND 240NH 20A 1 MOHM SMD | 6330 - Immediate | $31.28 | View Details |
| | 744311220 | FIXED IND 2.2UH 9A 11.4 MOHM SMD | 6295 - Immediate | $31.28 | View Details |
|  | 744314330 | FIXED IND 3.3UH 9A 9 MOHM SMD | 5429 - Immediate | $31.28 | View Details |
|  | 744314150 | FIXED IND 1.5UH 13A 4.3 MOHM SMD | 5293 - Immediate | $31.28 | View Details |
|  | 744314047 | FIXED IND 470NH 18A 1.35MOHM SMD | 4928 - Immediate | $31.28 | View Details |
|  | 7443251000 | FIXED IND 10UH 7.2A 16.3MOHM SMD | 10964 - Immediate | $35.15 | View Details |
