TSR-WI Series Ultra-Wide 8:1 Input DC/DC Converters

TRACO Power's TSR-WI line is a set of non-isolated, step down regulators with an ultra-wide 8:1 input voltage range which come in standard SIP-3 packages. Covering most of the standard bus and battery voltages this POL converter line is a versatile solution for many applications in distributed power systems where different input voltages have to be handled. Being able to use the same converter in many different situations effectively reduces the bill of material (BOM) of a given application.

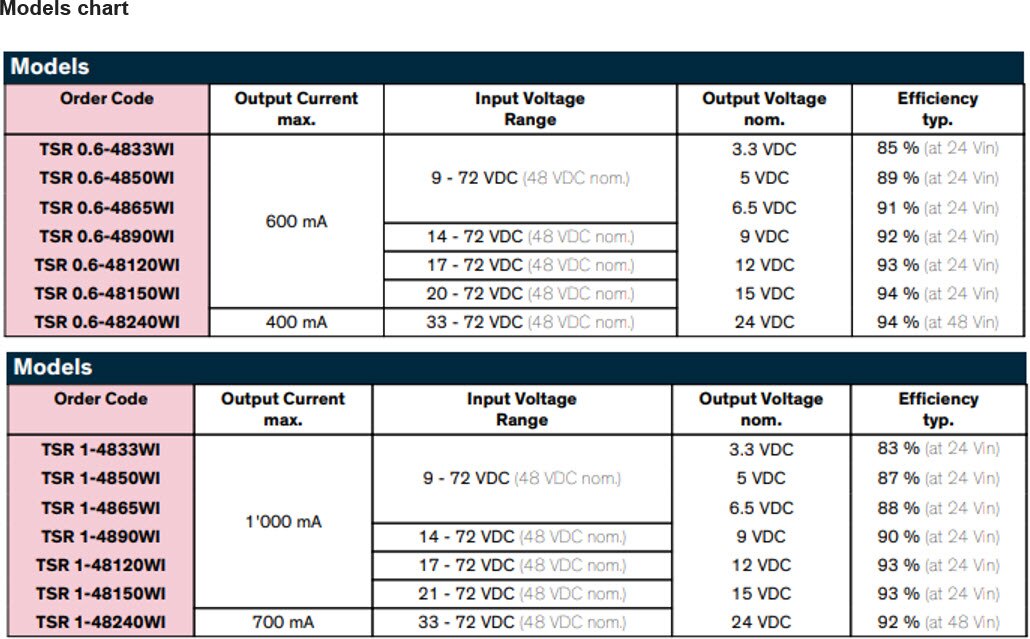

A high efficiency of up to 94% allows for an operating temperature range of -40°C to +85°C and makes them excellent drop-in replacements for less efficient LMxx linear regulators. Available with 0.6 A or 1 A maximum output current and standard features such as low standby current, precise regulation and protection against short circuit, overvoltage and overload the TSR-WI linen is suitable for many battery and distributed power applications.
