Thermally Protected Metal Oxide Varistors (MOV) – MOVTP Series

Eaton's MOVTP protect circuits from overvoltage transients while also preventing the device from reaching thermal runaway

Image of Eaton Electronics' Thermally Protected Metal Oxide Varistors (MOV) – MOVTP Series MOVTP series thermal protected metal oxide varistors from Eaton Electronics are ideal for protecting sensitive components at the circuit board level, providing protection against surges and transients from events such as lightning, power contact, and power induction. The combination of the metal oxide varistor with a thermal fuse element allows the MOVTP to protect circuits from overvoltage transients while also preventing the device from reaching thermal runaway in the event of a sustained overvoltage event. The MOVTP varistors are radial leaded devices and come in two or three-pin configurations. The integrated third lead can be used to generate an alarm signal during transient events or product end of life. The MOVTP is offered in 14 mm and 20 mm diameter discs and can withstand peak surge currents from 6,000 A to 10,000 A.

Resources

Features
  • Combination of metal oxide varistor and thermal fuse
  • Opens as an open circuit upon end of life
  • High peak surge current rating up to 10 kA
  • 3-lead version available for lead for indication
  • Voltage range: 130 VAC to 465 VAC / 170 VDC to 615 VDC
  • 14 mm to 20 mm through-hole disc size
  • UL 1449 compliant (cURus: E340782)
  • TUV: J 50513318
Applications
  • Smart meters
  • Surge protective devices
  • Uninterruptible power supplies (UPS)
  • Power distribution with integrated surge protection
  • Power supplies
  • White goods

14 mm Disc - Thermally Protected MOV

ImageManufacturer Part NumberDescriptionMaximum DC VoltsVaristor Voltage (Max)Available QuantityPriceView Details
VARISTOR 200V 6KA DISC 14MMMOVTP14V130NVARISTOR 200V 6KA DISC 14MM170 V220 V3523 - Immediate$11.33View Details
VARISTOR 240V 6KA DISC 14MMMOVTP14V150NVARISTOR 240V 6KA DISC 14MM200 V264 V5973 - Immediate$14.21View Details
VARISTOR 430V 6KA DISC 14MMMOVTP14V275NVARISTOR 430V 6KA DISC 14MM350 V473 V2948 - Immediate$14.21View Details
VARISTOR 510V 6KA DISC 14MMMOVTP14V320NVARISTOR 510V 6KA DISC 14MM410 V561 V1040 - Immediate$13.96View Details
VARISTOR 470V 6KA DISC 14MMMOVTP14V300NVARISTOR 470V 6KA DISC 14MM385 V517 V2235 - Immediate$13.96View Details
VARISTOR 750V 6KA DISC 14MMMOVTP14V465NVARISTOR 750V 6KA DISC 14MM615 V825 V114 - Immediate$14.86View Details
VARISTOR 390V 6KA DISC 14MMMOVTP14V250NVARISTOR 390V 6KA DISC 14MM320 V429 V11054 - Immediate$11.00View Details

14 mm Disc - Thermally Protected MOV with Indicator 3rd Lead

ImageManufacturer Part NumberDescriptionMaximum DC VoltsVaristor Voltage (Max)Available QuantityPriceView Details
VARISTOR 240V 6KA DISC 14MMMOVTP14V150TVARISTOR 240V 6KA DISC 14MM200 V264 V146 - Immediate$16.42View Details
VARISTOR 200V 6KA DISC 14MMMOVTP14V130TVARISTOR 200V 6KA DISC 14MM170 V220 V111 - Immediate$16.42View Details
VARISTOR 390V 6KA DISC 14MMMOVTP14V250TVARISTOR 390V 6KA DISC 14MM320 V429 V1200 - Immediate$12.73View Details
VARISTOR 750V 6KA DISC 14MMMOVTP14V465TVARISTOR 750V 6KA DISC 14MM615 V825 V140 - Immediate$16.42View Details
VARISTOR 510V 6KA DISC 14MMMOVTP14V320TVARISTOR 510V 6KA DISC 14MM410 V561 V145 - Immediate$16.42View Details
VARISTOR 470V 6KA DISC 14MMMOVTP14V300TVARISTOR 470V 6KA DISC 14MM385 V517 V1175 - Immediate$15.44View Details
VARISTOR 430V 6KA DISC 14MMMOVTP14V275TVARISTOR 430V 6KA DISC 14MM350 V473 V971 - Immediate$15.44View Details

20 mm Disc - Thermally Protected MOV

ImageManufacturer Part NumberDescriptionMaximum DC VoltsVaristor Voltage (Max)Available QuantityPriceView Details
VARISTOR 510V 10KA DISC 20MMMOVTP20V320NVARISTOR 510V 10KA DISC 20MM410 V561 V1084 - Immediate$16.09View Details
VARISTOR 750V 10KA DISC 20MMMOVTP20V465NVARISTOR 750V 10KA DISC 20MM615 V825 V0 - Immediate
563 - Marketplace		$17.08View Details
VARISTOR 200V 10KA DISC 20MMMOVTP20V130NVARISTOR 200V 10KA DISC 20MM170 V220 V1115 - Immediate$16.09View Details
VARISTOR 240V 10KA DISC 20MMMOVTP20V150NVARISTOR 240V 10KA DISC 20MM200 V264 V4300 - Immediate$16.42View Details
VARISTOR 390V 10KA DISC 20MMMOVTP20V250NVARISTOR 390V 10KA DISC 20MM320 V429 V27 - Immediate$17.08View Details
VARISTOR 430V 10KA DISC 20MMMOVTP20V275NVARISTOR 430V 10KA DISC 20MM350 V473 V944 - Immediate$16.09View Details
VARISTOR 470V 10KA DISC 20MMMOVTP20V300NVARISTOR 470V 10KA DISC 20MM385 V517 V4598 - Immediate$14.04View Details

20 mm Disc - Thermally Protected MOV with Indicator 3rd Lead

ImageManufacturer Part NumberDescriptionMaximum DC VoltsVaristor Voltage (Max)Available QuantityPriceView Details
VARISTOR 240V 10KA DISC 20MMMOVTP20V150TVARISTOR 240V 10KA DISC 20MM200 V264 V55 - Immediate$19.54View Details
VARISTOR 470V 10KA DISC 20MMMOVTP20V300TVARISTOR 470V 10KA DISC 20MM385 V517 V2004 - Immediate$14.86View Details
VARISTOR 430V 10KA DISC 20MMMOVTP20V275TVARISTOR 430V 10KA DISC 20MM350 V473 V1276 - Immediate$15.11View Details
VARISTOR 510V 10KA DISC 20MMMOVTP20V320TVARISTOR 510V 10KA DISC 20MM410 V561 V76 - Immediate$19.54View Details
VARISTOR 200V 10KA DISC 20MMMOVTP20V130TVARISTOR 200V 10KA DISC 20MM170 V220 V2503 - Immediate$18.72View Details
VARISTOR 750V 10KA DISC 20MMMOVTP20V465TVARISTOR 750V 10KA DISC 20MM615 V825 V2516 - Immediate$18.72View Details
VARISTOR 390V 10KA DISC 20MMMOVTP20V250TVARISTOR 390V 10KA DISC 20MM320 V429 V2610 - Immediate$18.31View Details
Published: 2022-02-04

Related Videos

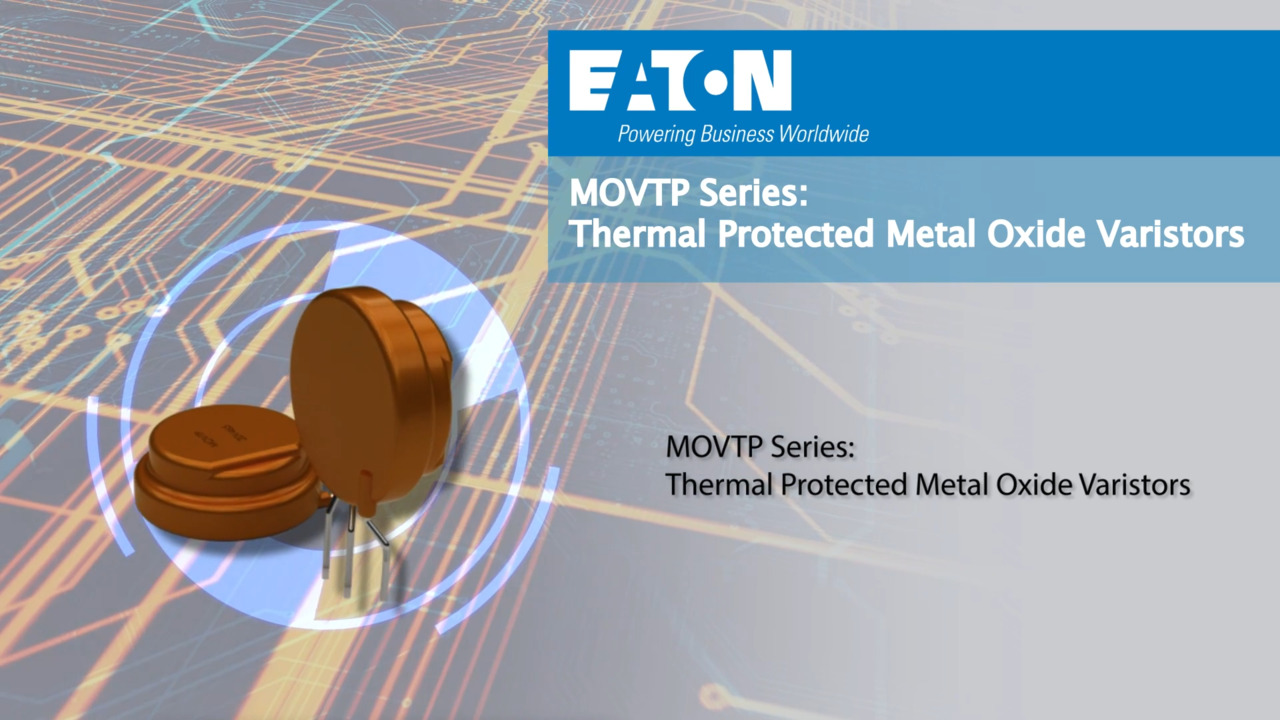

MOVTP Thermal Protected Metal Oxide Varistors
