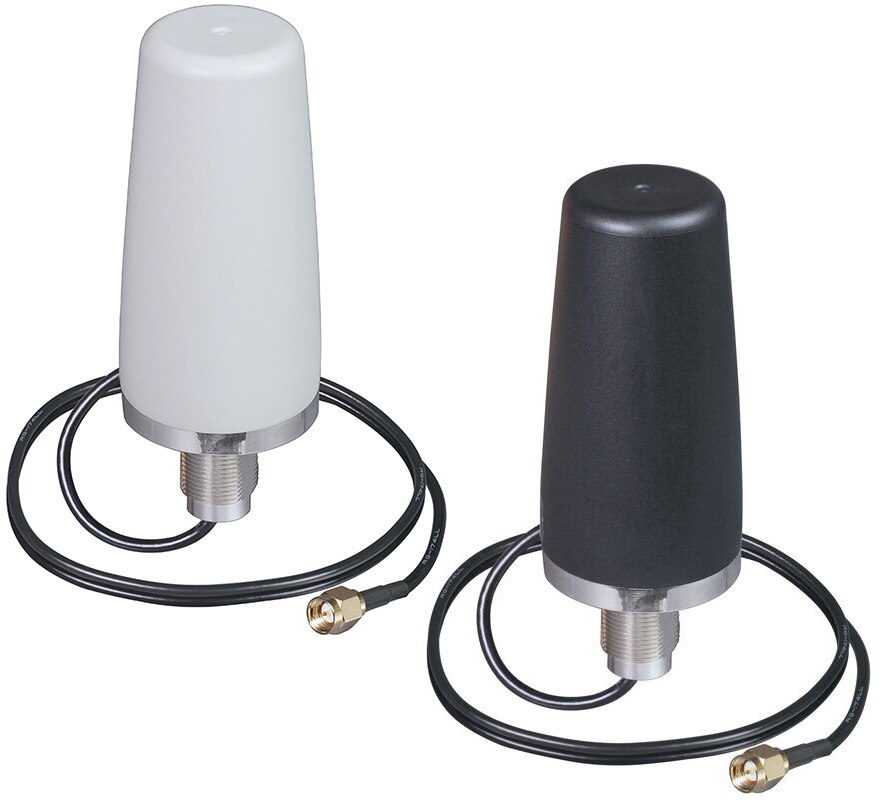

The Antenna Company AC87001 series cabled dome antennas provide robust compact, outdoor, omnidirectional cellular antenna solutions for cellular IoT applications including Cat-M1/LTE-M and NB-IoT systems. Each antenna supports IP67 and IP65 ingress protection as well as IK10 impact resistance, all under an attractive, UV-resistant, dome. The 82 mm x 40 mm mounted size combines excellent antenna performance with a compact low profile that fits in many applications from mobile/vehicular roof-mount to fixed vending machine use, and supports use on both metal enclosures or in free space including non-metallic enclosures.
The AC87001 compact dome antenna series is available in two colors, black and white, with fine matte finish, and with SMA connector termination. Similar-performing NMO-terminated (AC85002-NM series) and N-connector (AC85002-NJ series) compact dome antennas are also available.
Specifications

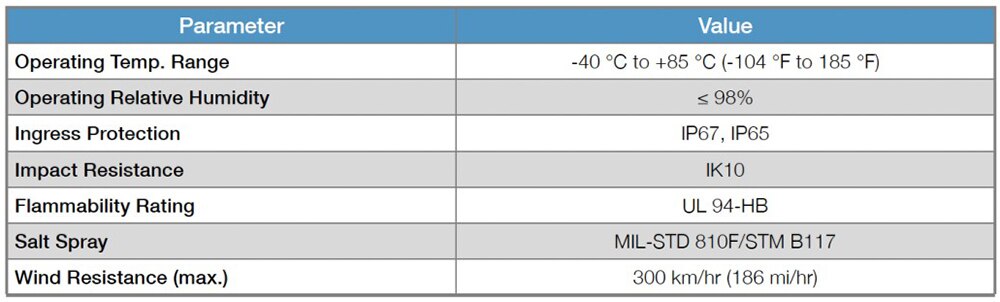

- AC87001 Electrical Table
- AC87001 Mechanical Table
Features
- Very high efficiency
- IP67/IP65 ingress protection
- IK10 impact resistance
- O-ring mounting seal
- UV resistance
- Salt spray resistance
- Ground plane independence
- Dimensions: 82 mm x 40 mm
- 1 m and 2 m cable lengths
Applications
- Worldwide 5G/4G/3G/2G cellular
- Cellular IoT
- Automotive/vehicular/OHV
- Outdoor CPE
- Fixed wireless
- Smart metering
- Internet of Things (IoT) devices
