MSP430FR5969 LaunchPad Low Power FRAM MCU Part 3 Slide 4

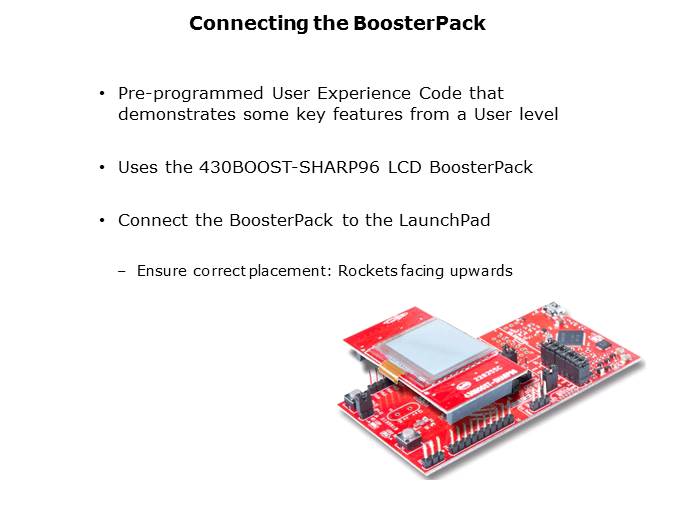

In order to run the FR5969 LaunchPad user Experience Demo code, the SHARP96 display BoosterPack is required. Align the BoosterPack with the 10-pin headers such that the LCD’s ribbon cable is close to the LaunchPad switches and the rocket symbol is facing upwards.

PTM Published on: 2014-06-24
