PowerMod-Slide7

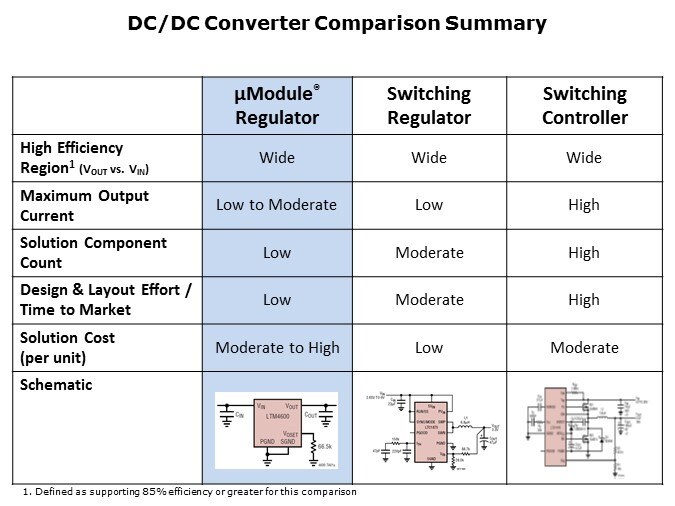

By including the controller(s), power switches, compensation, input and output bypass capacitors, and inductor(s) in most cases, the power module regulators simplify component selection, PCB layout and design-in effort to the level of a comparably feature-rich linear regulator. At the same time, they operate with high efficiency over a wide range of input and output voltage combinations like discrete switching solutions. Additionally, as many as four Linear Technology µModule® regulators may be paralleled together for even greater output current capability. µModule® regulators present a compelling DC/DC converter solution for engineers seeking the fastest time to market and/or facing limited power design resources.

PTM Published on: 2010-11-29
