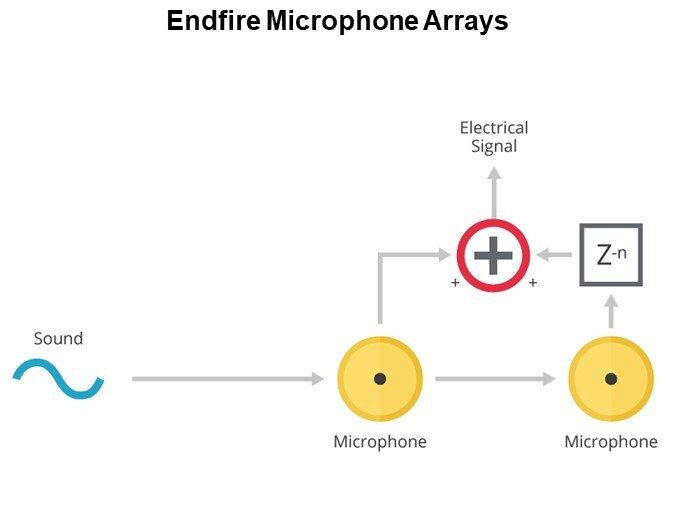

Endfire Microphone Arrays

Endfire microphone arrays are required to be pointed at the sound of interest and will only capture sound that is directly in front of the array, making handheld microphones a good application for this topology. They are constructed by arranging a line of microphones in the direction of the desired sound source, where the desired sound arrives at each microphone with a different time delay. Each microphone’s processing circuit may employ an electronic time delay to compensate for the audio time delay of the microphones.
