Demystifying VLSI: Crafting Silicon Dreams
2024-04-09 | By DWARAKAN RAMANATHAN
What is VLSI?
VLSI stands for Very-Large-Scale Integration. It refers to the process of creating integrated circuits (ICs) by combining thousands to millions of transistors on a single chip. VLSI technology allows the development of complex electronic systems with high functionality and performance in a compact form. VLSI Design is an iterative cycle. Designing a VLSI Chip includes a few problems such as functional design, logic design, circuit design, and physical design. The design is verified for accuracy by the process of simulation. If any design errors are found at any stage of verification, at least one of the previous design steps must be repeated to correct the error during the process of designing. The microprocessor and memory chips are VLSI devices. Before the introduction of VLSI technology, most ICs had a limited set of functions they could perform. An electronic circuit might consist of a CPU, ROM, RAM, and other glue logic. VLSI enables IC designers to add all of these into one chip.

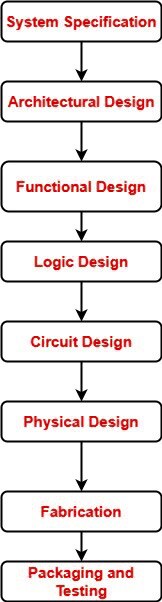

Design Flow:
- System Specification:
- Define high-level objectives for the final product, encompassing cost, performance, architecture, and external interfacing. Gather user/client-drivendesign specifications during this phase.
- Architectural Design:
- Determine the fundamental structure that aligns with system specifications. Design layout, integrating analog, mixed-signal blocks, memory management, internal/external communication, power requirements, and select process technology and layer stacks.
- Functional Design or Behavioral Design:
- Refine design specifications to articulate the functional behavior of the system. Aim for high-performance architectural design within cost constraints specified by initial requirements.
- Logic Design:
- Integrate structure into the behavioral representation. Focus on logic minimization, performance optimization, and testability. Address challenges in test vector generation, error detection, and correction. Leverage logic synthesis tools for automation.
- Circuit Design:
- Replace logic blocks with electronic circuits comprising resistors, capacitors, and transistors. Conduct circuit simulations to verify timing behavior. Apply Kirchhoff’s laws to analyze circuit behavior, solving integrodifferential equations in discrete time. Employ tools like SPICE for circuit simulation.
- Physical Design:
- Implement the actual layout, placing and interconnecting all components. Layout decisions impact area, correctness, and performance. Ensure adherence to design rules for correct chip fabrication. Detect and rectify errors such as short circuits, open circuits, and open channels.
- Fabrication:
- After layout and verification, proceed to manufacturing, known as tapeout. Generate manufacturing data, referred to as streaming out. Employ the photolithographic process to transfer the design onto silicon wafers (200mm to 300mm in diameter). Test the ICs, marking them as functional or defective.
- Packaging and Testing:
- Package functional chips, considering early configuration in the design process. Choose packaging types like Dual In-Line Packaged (DIPs), Pin Grid Array (PGAs), or Ball Grid Arrays (BGAs). Connect die pins to package pins through wire bonding or solder bumps (flip-chip). Seal the package and distribute to end-users or clients after testing.
Frontend and Backend in VLSI:
- Frontend:
The front end of VLSI design involves the initial stages of the design flow, where the focus is on specifying and conceptualizing the design. It encompasses tasks related to high-level design, abstraction, and functional representation of the desired integrated circuit. Key stages in the frontend include:
System Specification: Defining the objectives, performance requirements, and architecture of the desired system.
Example: Imagine designing a microprocessor for a mobile device. During system specification, you would define the overall performance goals, power constraints, and communication interfaces required by the processor.
Architectural Design: Determining the basic structure of the design based on system specifications.
Example: For the mobile microprocessor, in the architectural design phase, you would decide on the key components like the arithmetic logic unit (ALU), control unit, and memory hierarchy. This phase involves deciding how these components will interact to meet the performance goals.
Functional Design or Behavioral Design: Refining the design specifications to define the functional behavior of the system.
Example: Refining the design specifications, you might specify how the microprocessor handles multitasking, power management, and communication with other devices. This phase ensures that the high-level functionality aligns with user requirements.
Logic Design: Adding the structural details to the behavioral representation, focusing on logic minimization and performance optimization.
Example: In the logic design stage, you would focus on how the ALU performs specific operations, how data is moved between registers, and how the control unit manages the overall operation of the microprocessor. Logic minimization techniques are applied to optimize performance and minimize power consumption.
In summary, the front end is concerned with capturing the functionality and high-level structure of the design.
- Backend:
The backend of VLSI design involves the later stages of the design flow, where the focus is on the physical implementation of the design. It includes the translation of the high-level design into a format suitable for manufacturing. Key stages in the backend include:
Circuit Design: Replacing logical elements with electronic circuits and conducting simulations to verify timing behavior.
Example: Once the logic is defined, the circuit design phase involves replacing logical elements with actual electronic circuits. For the mobile microprocessor, this could involve designing the specific transistors and interconnections that make up the ALU and other components. Circuit simulations would be conducted to ensure the designed circuits meet timing and performance requirements.
Physical Design: Creating the actual layout of the system, placing components, and ensuring correct interconnections.
Example: In the physical design phase, the layout of the microprocessor is created. This involves placing the designed circuits on the chip and connecting them. The physical design must adhere to manufacturing constraints and design rules to avoid issues like short circuits or excessive power consumption.
Fabrication: Sending the design for manufacturing, including processes like photolithography to transfer the design onto silicon wafers.
Example: The designed chip layout is sent for fabrication. Using processes like photolithography, the design is transferred onto silicon wafers. This phase involves the actual manufacturing of the integrated circuit.
Packaging and Testing: Packaging the fabricated chips and subjecting them to testing before distribution.
Example: After fabrication, the functional chips are packaged. For the mobile microprocessor, the chosen package might be a Ball Grid Array (BGA). Each chip is tested for functionality, and defective chips are marked. The packaged chips are then sent to manufacturers of mobile devices.
In summary, the backend is concerned with the physical realization and manufacturing of the integrated circuit.
Conclusion:
In conclusion, VLSI (Very Large-Scale Integration) technology is a cornerstone in the realm of electronic systems and semiconductor devices, shaping innovations across diverse industries. The front end of VLSI design involves the conceptualization and specification of high-level design goals, while the back end focuses on the physical realization and manufacturing of integrated circuits.
From consumer electronics to telecommunications, automotive, medical devices, industrial automation, aerospace, networking, data centers, and semiconductor manufacturing, VLSI plays a pivotal role in enabling the development of advanced and efficient electronic products. Major industry players such as Samsung, Apple, Qualcomm, NVIDIA, Medtronic, Siemens, and Intel are at the forefront of leveraging VLSI advancements to bring cutting-edge technologies to the market.
The continuous evolution of VLSI technology is not only evident in the increasing complexity and performance of integrated circuits but also in the expansion of applications across various sectors. As research and development efforts persist, and academic institutions contribute to the growth of knowledge and expertise in VLSI design, the future promises even more sophisticated electronic systems with enhanced capabilities.
In essence, the convergence of creativity, engineering, and technological prowess in VLSI design drives the ongoing revolution in electronics, paving the way for smarter, more connected, and more efficient solutions that impact our daily lives and drive progress in diverse industries.
