MangOH Red

產品說明

mangOH™ Red 是一款低功率物聯網 (IoT) 平台，能以電池電力運作長達十年。根據 mangoh.io，此平台具有以下特性：

• 信用卡大小的外型尺寸，非常適合快速進行概念驗證；
• 具有扣入式插槽，可加入任何 CF3™ 相容模組，包括無線模組 (2G 至 4G 及 LTE-M/NB-IoT)，達到長達 10 年的電池續航力 (本文使用的 CF3 模組為 WP8548_1103113，DigiKey 零件編號 1645-1022-1-ND)；
• 具有 IoT 擴充卡插槽，可加入任何採用 IoT 擴充卡開放標準的技術；
• 整合式 Sierra Wireless 智慧 SIM，隨附多達 100 MB 的免費數據流量 (視區域而定)，並可搭配任何市售 SIM 使用；
• 整合 AirVantage IoT 平台，可在雲端建構、部署並管理解決方案；
• 內建 Wi-Fi b/g/n 和藍牙 4.2 BLE，並搭載 Cortex-M4，可即時存取 I/O；
• 內建加速計／陀螺儀、壓力和光感測器，並具有 26 引腳 Raspberry Pi 相容連接器 (連接器纜線的 DigiKey 零件編號為 1597-1065-ND)。

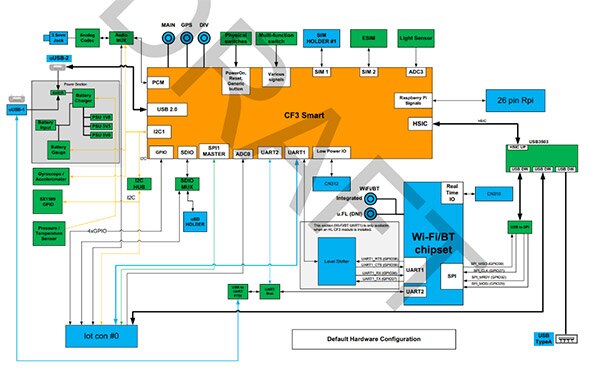

  (圖片來源：Talon Communications Inc.)

  包裝內容物

  開箱內容物：

  • mangOH Red
  • CF3 模組 (此例為 WP8548_1103113)
  • Micro-USB 纜線
  • 2 個天線 (1 個主天線及 1 個全球導航衛星系統 (GNSS))
  • Sierra Wireless micro-SIM 卡 (配有初始數據流量)

  硬體安裝

  依照 mangOH Red 使用與安裝指南的安裝指示操作。

  MangOH Red 有兩個 micro-USB 連接埠。

  硬體安裝相當直覺，只要將 micro-USB 插入 mangOH 與電腦，接上天線，再將 SIM 卡插入 mangOH 背面的插槽即可。下圖顯示取自 mangOH Red 開發人員指南的硬體架構圖：

  (圖片來源：Talon Communications Inc.)

  Raspberry Pi 連接器

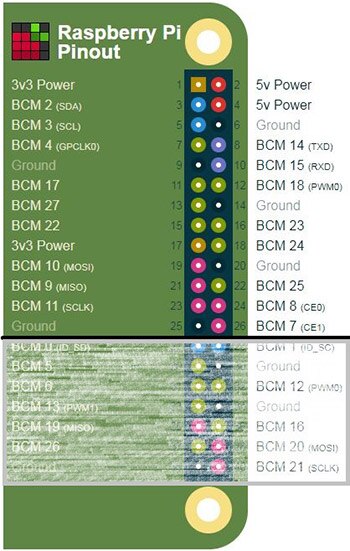

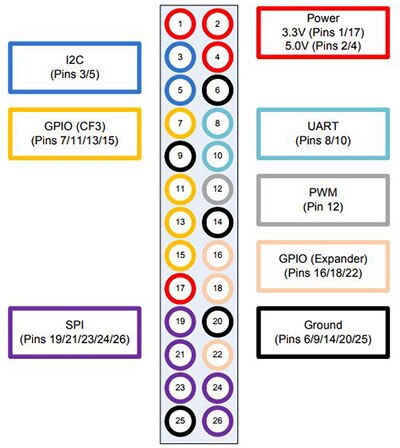

  帶狀纜線連接器的 DigiKey 零件編號為 1597-1065-ND。下圖顯示 Raspberry Pi 與 MangOH Red 的針腳配置圖 (Rasperry Pi 的針腳配置圖中，MangOH Red 未使用的引腳已被塗掉)：連接方式為針腳 1 對針腳 1、針腳 2 對針腳 2，依此類推。

  (圖片來源：pinout.xyz)

  (圖片來源：Talon Communications Inc.)

  軟體安裝

  軟體安裝則稍微複雜一點。開始使用此裝置時，應注意到 mangOH 的最終成品牽涉三大廠商。MangOH Red 就是板件本身；Sierra Wireless 是 CF3 模組的製造商也是 AirVantage 的所有者。AirVantage 屬於 IoT 雲端服務，可儲存來自 mangOH 的資料；Legato 是 Linux 架構的命令列介面 (CLI)，可用來與 mangOH 連線。我會在過程中一一討論這些部分，並說明如何連結到這些廠商的論壇。

  第一個要造訪的網站是開始使用 mangOH 網站。您可以選擇使用 Windows 或 Linux 作業系統 (Mac OS 也相容，我稍候會談到)。無論您選用何種作業系統，您仍然要透過 Windows 上的虛擬機 (Oracle VirtualBox) 或 Linux 上的 Legato 開發附加元件來結合 Legato CLI。Windows 安裝手冊及 Linux 安裝手冊是設置機器時很棒的資源，此處不再重述。

  如果您使用 64 位元的 Linux 機器，請注意 Linux 安裝手冊第 16 頁第 6 項。

  您也應該下載 Developer Studio (有提供 Windows 版、Linux 版與 Mac 版)。根據 Sierra Wireless 網站：「Developer Studio 是 Legato 應用程式框架所使用的 Sierra Wireless 整合式開發環境 (IDE)」。這代表您有兩種方式能建立自己的應用程式：使用基本的文字程式，或使用 Developer Studio (圖像式程式，且會自動化處理部分檔案／資料夾的建立作業)。我在每個作業系統都下載 Developer Studio，只遇到一個小問題，就是 Mac OS 的 Java 8 需求；Java 8 的一般安裝版本不足以運行 Developer Studio，因此我最後下載並安裝了 Oracle 的 Java SE 開發套件 8u151。

  範例應用程式與檔案結構

  安裝好 mangOH 後，最好從 Github 上的 Legato 開始。下載或複製 Legato 資料夾。您不妨造訪 Legato 範例應用程式說明，進一步瞭解您在 Github 所下載的一些範例。Legato 範例應用程式網站亦提供絕佳的示範資源。

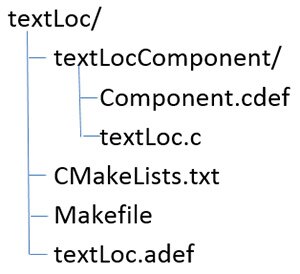

  此外也要注意檔案結構。每個應用程式都有以下的目錄／檔案結構：



  檔案結構也可能包含 .API 與 .h 檔案類型，視應用程式而定。編程主要內容都在 .c 檔案內，其他檔案則是編譯器建立應用程式時須遵守的指示。

  範例：GNSS 定位文字應用程式

  詳細說明 mangOH Red 諸多功能的範例應用程式會以文字形式將 mangOH Red 的座標發送給使用者。檔案結構如上述。

  以下提供 textLoc.c 檔的程式碼。點選此處查看 Randall Restle 的新產品探索，他在此初次介紹 mangOH Red。

  複製
  textLoc.c
      //--------------------------------------------------------------------------------------------------
  /** @file textLoc.c
  *
  * This app illustrates a sample usage of ultra low power mode API. This app reads the current gps
  * location and then sends it as a text message to a destination cell phone number. Once the text
  * message has been sent, the device enters ultra low power mode. The device will wake up from
  * ultra low power mode after a configurable delay.
  *
  * @note This app expects destination cell number to be specified in environment variable section
  * of adef file. If nothing specified in environment variable, it will send message to a default
  * non-existent phone number.
  *
  * Copyright (C) Sierra Wireless Inc.
  */
  //--------------------------------------------------------------------------------------------------

  #include "legato.h"
  /* IPC APIs */
  #include "interfaces.h"

  //--------------------------------------------------------------------------------------------------
  /**
  * GPS timeout interval in minutes
  *
  * @note Please change this timeout value as needed.
  */
  //--------------------------------------------------------------------------------------------------
  #define GPSTIMEOUT 15

  //--------------------------------------------------------------------------------------------------
  /**
  * Default phone number to send location information.
  *
  * @note This is a non-existent phone number (ref:
  * https://en.wikipedia.org/wiki/Fictitious_telephone_number).
  */
  //--------------------------------------------------------------------------------------------------
  #define DEFAULT_PHONE_NO "8005550101"

  //--------------------------------------------------------------------------------------------------
  /**
  * Timer interval(in seconds) to exit from shutdown/ultralow-power state.
  *
  * @note Please change this interval as needed.
  */
  //--------------------------------------------------------------------------------------------------
  #define ULPM_EXIT_INTERVAL 30

  //--------------------------------------------------------------------------------------------------
  /**
  * Gpio used to exit from shutdown/ultralow-power state.
  *
  * @note Please change gpio number as needed.
  */
  //--------------------------------------------------------------------------------------------------
  #define WAKEUP_GPIO_NUM 38

  //--------------------------------------------------------------------------------------------------
  /**
  * Pointer to the null terminated string containing the destination phone number.
  */
  //--------------------------------------------------------------------------------------------------
  static const char *DestPhoneNumberPtr;

  //--------------------------------------------------------------------------------------------------
  /**
  * Attempts to use the GPS to find the current latitude, longitude and horizontal accuracy within
  * the given timeout constraints.
  *
  * @return
  * - LE_OK on success
  * - LE_UNAVAILABLE if positioning services are unavailable
  * - LE_TIMEOUT if the timeout expires before successfully acquiring the location
  *
  * @note
  * Blocks until the location has been identified or the timeout has occurred.
  */
  //--------------------------------------------------------------------------------------------------
  static le_result_t GetCurrentLocation(
  int32_t *latitudePtr, ///< [OUT] latitude of device - set to NULL if not needed
  int32_t *longitudePtr, ///< [OUT] longitude of device - set to NULL if not needed
  int32_t *horizontalAccuracyPtr, ///< [OUT] horizontal accuracy of device - set to NULL if not
  ///< needed
  uint32_t timeoutInSeconds ///< [IN] duration to attempt to acquire location data before
  ///< giving up. A value of 0 means there is no timeout.
  )
  {
  le_posCtrl_ActivationRef_t posCtrlRef = le_posCtrl_Request();
  if (!posCtrlRef)
  {
  LE_ERROR("Can't activate the Positioning service");
  return LE_UNAVAILABLE;
  }

  le_result_t result;
  const time_t startTime = time(NULL);
  LE_INFO("Checking GPS position");
  while (true)
  {
  result = le_pos_Get2DLocation(latitudePtr, longitudePtr, horizontalAccuracyPtr);
  if (result == LE_OK)
  {
  break;
  }
  else if (
  (timeoutInSeconds != 0) &&
  (difftime(time(NULL), startTime) > (double)timeoutInSeconds))
  {
  result = LE_TIMEOUT;
  break;
  }
  else
  {
  // Sleep for one second before requesting the location again.
  sleep(1);
  }
  }

  le_posCtrl_Release(posCtrlRef);

  return result;
  }

  //--------------------------------------------------------------------------------------------------
  /**
  * Sends an SMS text message to the given destination with the given message content.
  *
  * @return
  * - LE_OK on success
  * - LE_FAULT on failure
  */
  //--------------------------------------------------------------------------------------------------
  static le_result_t SendTextMessage(
  const char *destinationNumberPtr, ///< [IN] Phone number to send the text message to as ASCII
  ///< values
  const char *messageBodyPtr ///< [IN] Text message body content
  )
  {
  le_result_t result = LE_OK;
  LE_INFO("Sending SMS");

  le_sms_MsgRef_t sms = le_sms_Create();

  if (le_sms_SetDestination(sms, destinationNumberPtr) != LE_OK)
  {
  result = LE_FAULT;
  LE_ERROR("Could not set destination phone number");
  goto sms_done;
  }

  if (le_sms_SetText(sms, messageBodyPtr) != LE_OK)
  {
  result = LE_FAULT;
  LE_ERROR("Could not set text message body");
  goto sms_done;
  }

  if (le_sms_Send(sms) != LE_OK)
  {
  result = LE_FAULT;
  LE_ERROR("Could not send SMS message");
  goto sms_done;
  }

  LE_INFO("SMS Message sent");

  sms_done:
  le_sms_Delete(sms);
  return result;
  }

  //--------------------------------------------------------------------------------------------------
  /**
  * Send the device location as a text message
  *
  * Attempts to send an SMS text message containing the current device location to the destination
  * phone number.
  *
  * @note
  * No failure notification is provided if location services or SMS send are unsuccessful.
  */
  //--------------------------------------------------------------------------------------------------
  static void SendSmsCurrentLocation(
  void
  )
  {
  char smsBody[LE_SMS_TEXT_MAX_LEN];
  int32_t latitude;
  int32_t longitude;
  int32_t horizontalAccuracy;

  const le_result_t result =
  GetCurrentLocation(&latitude, &longitude, &horizontalAccuracy, GPSTIMEOUT * 60);
  if (result == LE_OK)
  {
  snprintf(smsBody, sizeof(smsBody), "Loc:%d,%d", latitude, longitude);
  }
  else
  {
  strncpy(smsBody, "Loc:unknown", sizeof(smsBody));
  }
  SendTextMessage(DestPhoneNumberPtr, smsBody);
  }

  //--------------------------------------------------------------------------------------------------
  /**
  * Configure the boot source and shutdown MDM.
  */
  //--------------------------------------------------------------------------------------------------
  static void CfgShutDown
  (
  void
  )
  {
  // Boot after specified interval.
  if (le_ulpm_BootOnTimer(ULPM_EXIT_INTERVAL) != LE_OK)
  {
  LE_ERROR("Can't set timer as boot source");
  return;
  }

  // Boot on gpio. Please note this is platform dependent, change it when needed.
  if (le_ulpm_BootOnGpio(WAKEUP_GPIO_NUM, LE_ULPM_GPIO_LOW) != LE_OK)
  {
  LE_ERROR("Can't set gpio: %d as boot source", WAKEUP_GPIO_NUM);
  return;
  }

  // Initiate shutdown.
  if (le_ulpm_ShutDown() != LE_OK)
  {
  LE_ERROR("Can't initiate shutdown.");
  }
  }

  //--------------------------------------------------------------------------------------------------
  /**
  * Callback function to handle change of network registration state.
  */
  //--------------------------------------------------------------------------------------------------
  static void RegistrationStateHandler
  (
  le_mrc_NetRegState_t state, ///< [IN] Network registration state.
  void *contextPtr ///< [IN] Context pointer.
  )
  {
  switch(state)
  {
  case LE_MRC_REG_HOME:
  case LE_MRC_REG_ROAMING:
  LE_INFO("Registered");
  SendSmsCurrentLocation();
  LE_INFO("Now configure boot source and shutdown MDM");
  CfgShutDown();
  break;
  case LE_MRC_REG_SEARCHING:
  LE_INFO("Searching...");
  break;
  case LE_MRC_REG_NONE:
  LE_INFO("Not registered");
  break;
  case LE_MRC_REG_DENIED:
  LE_ERROR("Registration denied");
  break;
  case LE_MRC_REG_UNKNOWN:
  LE_ERROR("Unknown registration state");
  break;
  }
  }

  //--------------------------------------------------------------------------------------------------
  /**
  * Simulate entry into the current NetReg state by calling RegistrationStateHandler
  *
  * RegistrationStateHandler will only be notified of state change events. This function exists to
  * simulate the change into the current state.
  */
  //--------------------------------------------------------------------------------------------------
  static void SimulateNetRegStateChangeToCurrentState(
  void *ignoredParam1, ///< Only exists to allow this function to conform to the
  ///< le_event_DeferredFunc_t declaration
  void *ignoredParam2 ///< Only exists to allow this function to conform to the
  ///< le_event_DeferredFunc_t declaration
  )
  {
  le_mrc_NetRegState_t currentNetRegState;
  LE_FATAL_IF(le_mrc_GetNetRegState(¤tNetRegState) != LE_OK, "Couldn't get NetRegState");
  RegistrationStateHandler(currentNetRegState, NULL);
  }

  //--------------------------------------------------------------------------------------------------
  /**
  * Get the destination phone number.
  **/
  //--------------------------------------------------------------------------------------------------
  static void GetDestinationCellNo
  (
  void
  )
  {
  DestPhoneNumberPtr = getenv("DEST_CELL_NO");
  if (!DestPhoneNumberPtr)
  {
  LE_WARN(
  "No destination cell number is specified. Using a default non-existent number");
  DestPhoneNumberPtr = DEFAULT_PHONE_NO;
  }

  LE_INFO("Destination phone number = %s", DestPhoneNumberPtr);
  }


  COMPONENT_INIT
  {
  char version[LE_ULPM_MAX_VERS_LEN + 1];

  LE_INFO("TextLoc started");

  // Get ultra low power manager firmware version
  LE_FATAL_IF(
  le_ulpm_GetFirmwareVersion(version, sizeof(version)) != LE_OK,
  "Failed to get ultra low power firmware version");
  LE_INFO("Ultra Low Power Manager Firmware version: %s", version);

  // Now check whether boot was due to timer expiry.
  if (le_bootReason_WasTimer())
  {
  LE_INFO("Booted from timer, not sending another text message.");
  }
  else if (le_bootReason_WasGpio(WAKEUP_GPIO_NUM))
  {
  LE_INFO("Booted from GPIO, not sending another text message.");
  }
  else
  {
  // Get the destination phone number
  GetDestinationCellNo();

  // Register a callback handler for network registration state.
  le_mrc_AddNetRegStateEventHandler(
  (le_mrc_NetRegStateHandlerFunc_t)RegistrationStateHandler, NULL);
  le_event_QueueFunction(&SimulateNetRegStateChangeToCurrentState, NULL, NULL);
  }
  }
  The textLoc.adef file is:
  textLoc.adef
  sandboxed: false

  version: 1.0.0
  maxFileSystemBytes: 512K

  executables:
  {
  textloc = ( textLocComponent )
  }

  processes:
  {
  envVars:
  {
  LE_LOG_LEVEL = DEBUG
  // This is a non-existent fictitious phone number. Change it to a valid phone number.
  DEST_CELL_NO = 8005550101
  }
  run:
  {
  ( textloc )
  }
  maxCoreDumpFileBytes: 512K
  maxFileBytes: 512K
  }

  bindings:
  {
  textloc.textLocComponent.le_mrc -> modemService.le_mrc
  textloc.textLocComponent.le_posCtrl -> positioningService.le_posCtrl
  textloc.textLocComponent.le_pos -> positioningService.le_pos
  textloc.textLocComponent.le_sms -> modemService.le_sms
  textloc.textLocComponent.le_ulpm -> powerMgr.le_ulpm
  textloc.textLocComponent.le_bootReason -> powerMgr.le_bootReason
  }

  The Component.cdef:
  Component.cdef
  requires:
  {
  api:
  {
  modemServices/le_mrc.api
  modemServices/le_sms.api
  positioning/le_posCtrl.api
  positioning/le_pos.api
  le_ulpm.api
  le_bootReason.api
  }
  }

  sources:
  {
  textLoc.c
  }
  Makefile:
  Makefile
  TARGETS := $(MAKECMDGOALS)

  .PHONY: all $(TARGETS)
  all: $(TARGETS)

  $(TARGETS):
  mkapp -v -t $@ \
  textLoc.adef

  clean:
  rm -rf _build_* *.update
