Non-Magnetic MLCCs Slide 9

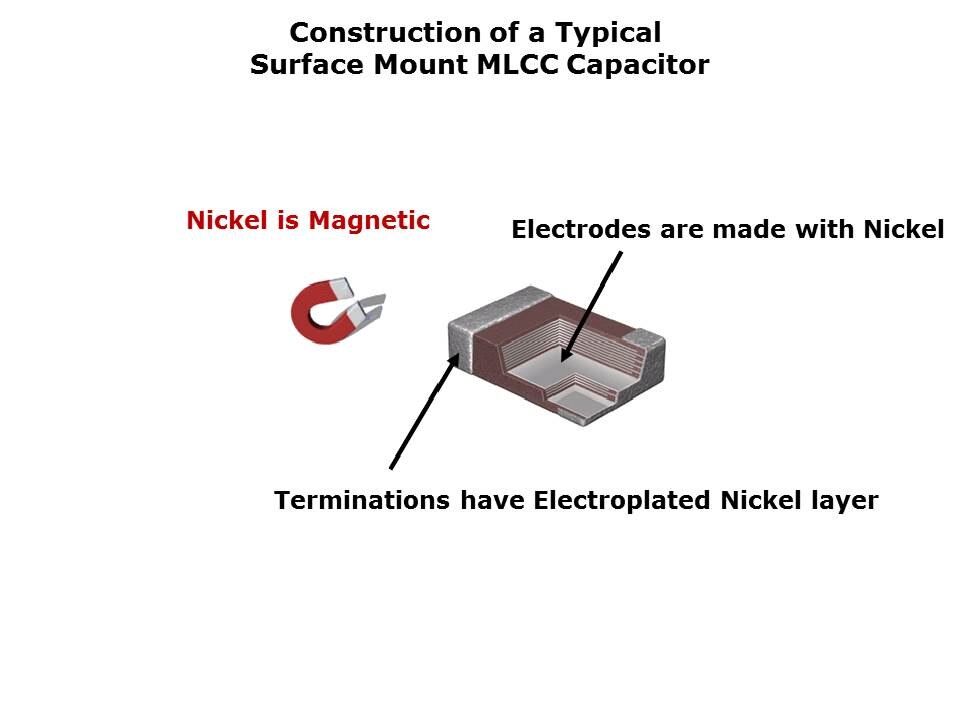

Most surface mount MLCC capacitors are made of ferromagnetic materials. Nickel is used to make up the large electrode surface area in a multilayer capacitor. The terminals on MLCC’s may also have a electrodeposited thin nickel layer which is ferromagnetic and can cause electromagnetic interference.
