HDO4096-Slide14

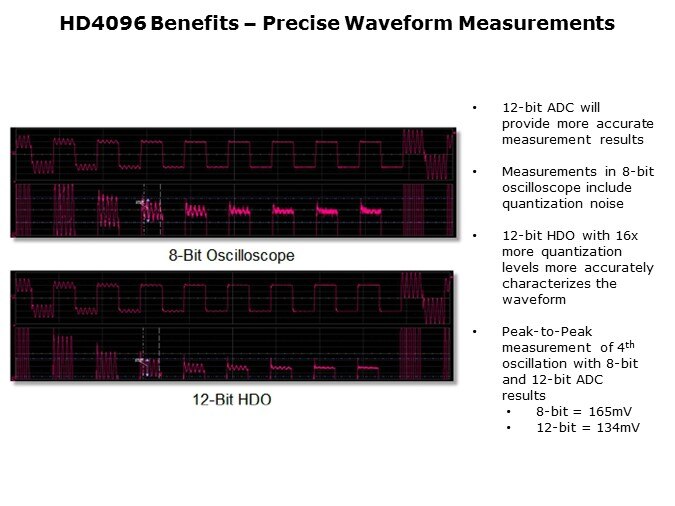

HD4096 technology also improves measurement precision. The peak to peak measurement of this signal shown here is displayed as 165mV by the 8-bit oscilloscope, the same measurement on the same signal captured by the 12-bit oscilloscope is displayed at 134mV.

PTM Published on: 2012-11-14
