HDO4096-Slide4

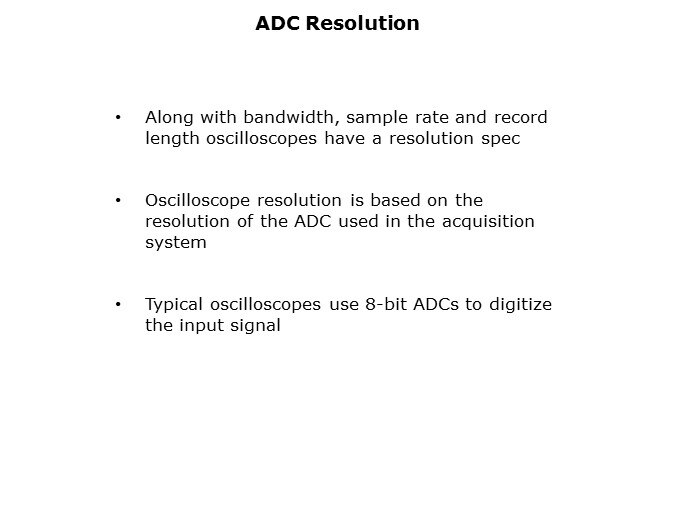

In a digital oscilloscope the resolution of the instrument comes from the resolution of the ADC used in the acquisition system. Today's typical benchtop oscilloscopes have an 8-bit ADC, which digitizes signals using 256 quantization levels.
