PTC Overcurrent POSISTOR Slide 16

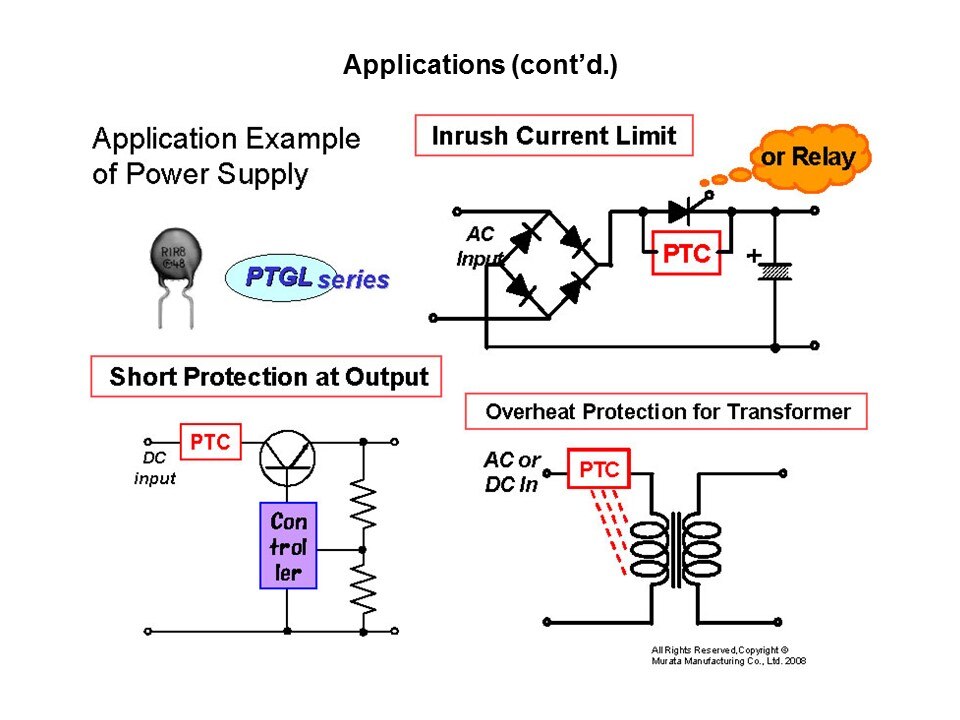

The radial lead PTGL series has many applications in AC-to-DC converters, power adapters, and fluorescent lamp ballasts. This series can operate up to 265 V and offers resettable protection in many power supply circuits. It can also work as a current limiting resistor to suppress inrush current.
PTM Published on: 2011-11-02
