PTC Overcurrent POSISTOR Slide 13

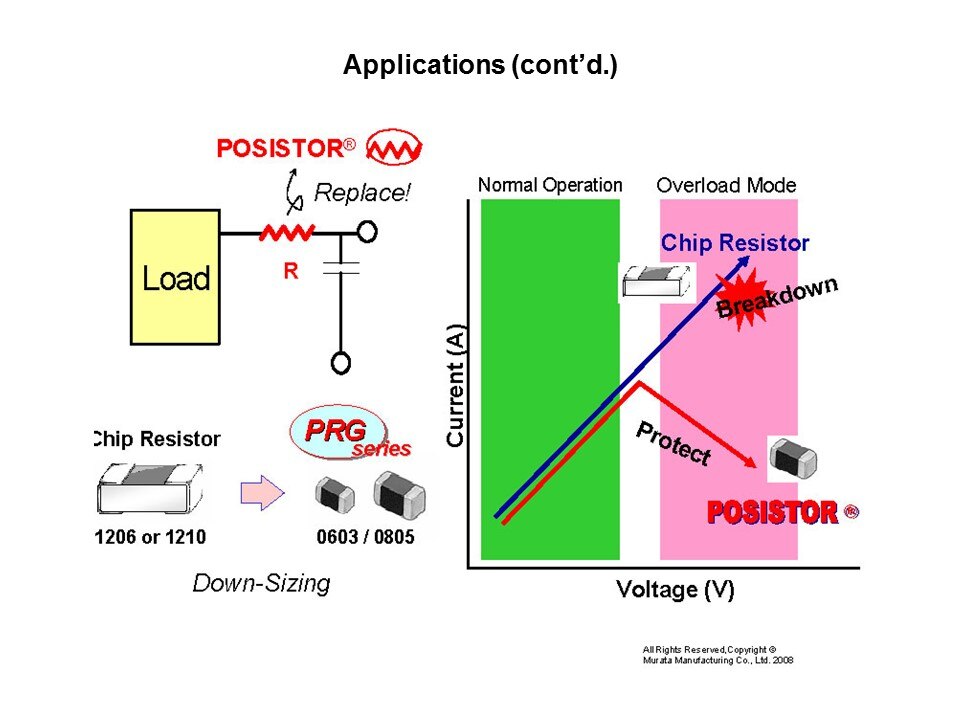

Smaller sized POSISTORs® can replace a larger sized chip resistor in applications looking for size reductions. Larger size chip resistors are often selected due to a concern with smaller chip resistors breaking down in overload situations. Even a small POSISTOR® can protect itself during overload situations and does not require wattage rating considerations as long as it is operated below its maximum current and maximum voltage specifications.
