PTC Overcurrent POSISTOR Slide 15

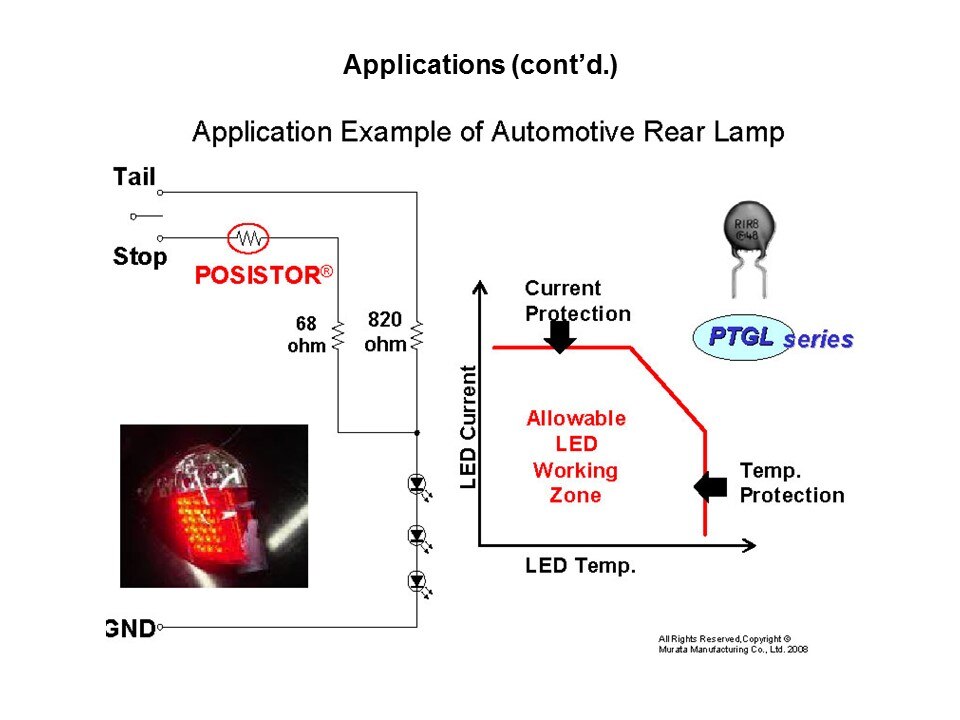

High powered LED lighting systems are very popular for appliance and automotive applications. LEDs require both current protection and temperature protection to achieve a maintenance free design. A POSISTOR® installed in series with a resistor can work for both issues and offer resettable protection.
PTM Published on: 2011-11-02
