ac couple

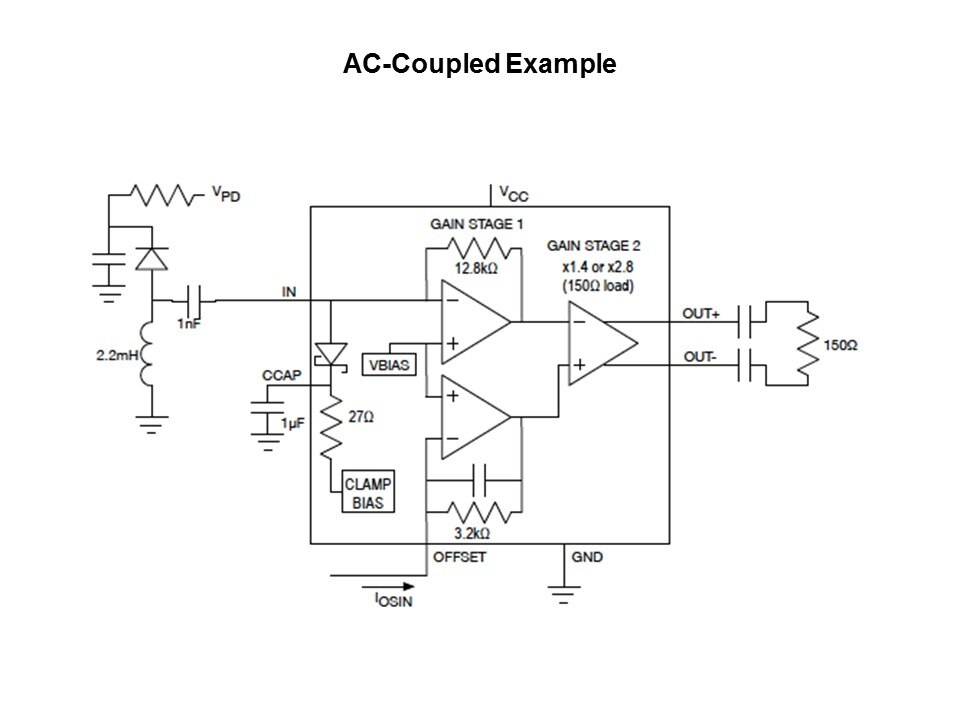

The other common architecture is AC-coupled where a 1 nanofarad capacitor is placed between the diode anode and the amplifier input. This topology eliminates any DC bias introduced by the diode at the input but requires additional components.
