APD-Slide13 LT3571

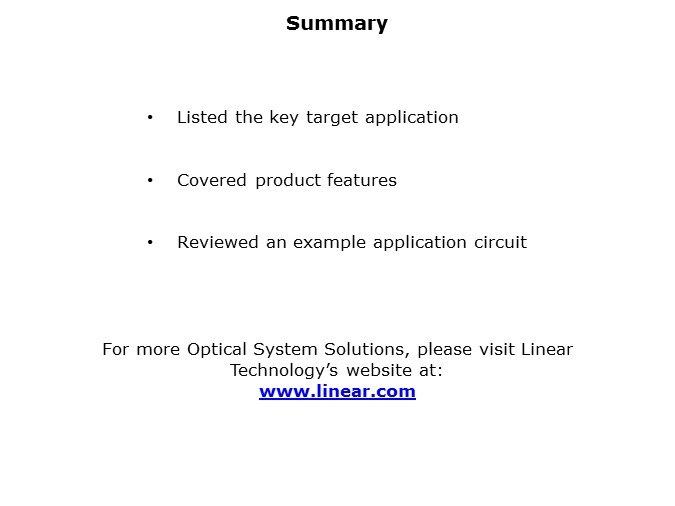

In summary, the LT3571 is an excellent choice for optical system communication receivers, where transient response, high gain and small footprints are needed. Slight modifications in the circuitry result in fast transient response or accurate temperature compensation. Demo board DC1423A provides a good starting point for an APD bias solution, however it does not have the temperature compensation block. LTC excels in products that are uniquely tailored to solve specific design issues. Be sure to check the website at www.linear.com for additional circuits and solutions for the optical market as well as other market areas.

PTM Published on: 2011-05-13
