POL-Slide12

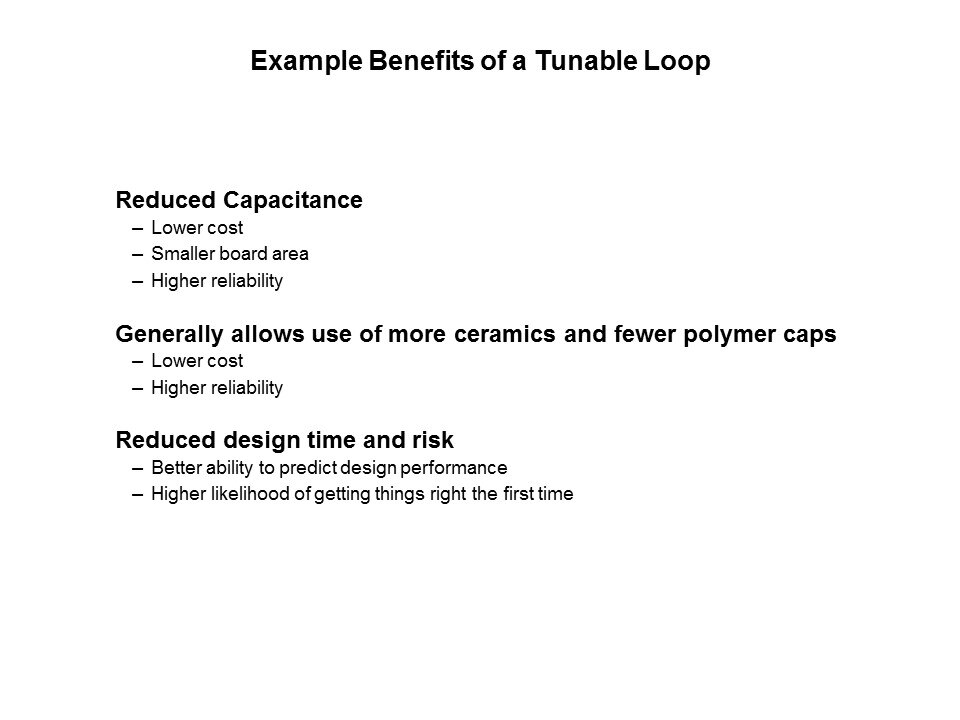

As shown in the previous two examples, the tunable loop can significantly optimize a point-of-load solution. Less capacitance means more than just a reduction in cost and space, the reduced component count increases reliability too! With an overall reduction in capacitance needed, ceramics can now play a more significant role over polymer capacitors, further reducing cost and increasing reliability. Finally, with an optimized solution, design time and risk are minimized.

PTM Published on: 2011-10-26
