Mapping a Digi XBee IoT Network with Digi XCTU Slide 17

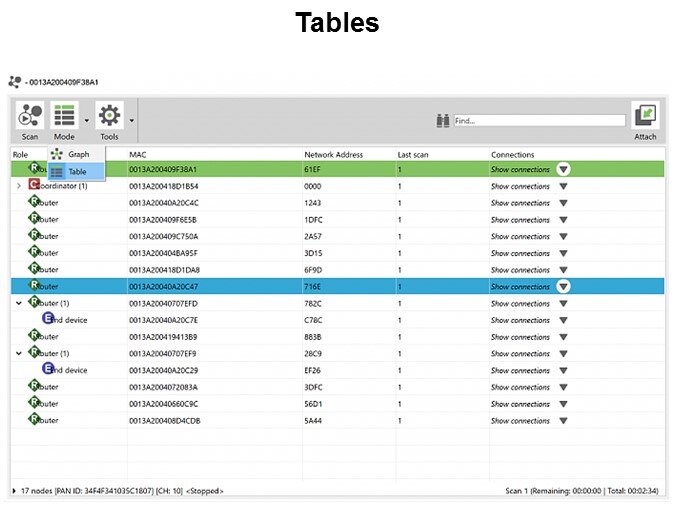

The graph view of the network provides excellent information on the layout and relationships between the network nodes. However, it can become overwhelming as networks get larger, or when the task at hand is better suited to a sorted list. Table view on the Mode menu will display the network in a spreadsheet view—much better for networks with hundreds of nodes to sort through.
