Mapping a Digi XBee IoT Network with Digi XCTU Slide 15

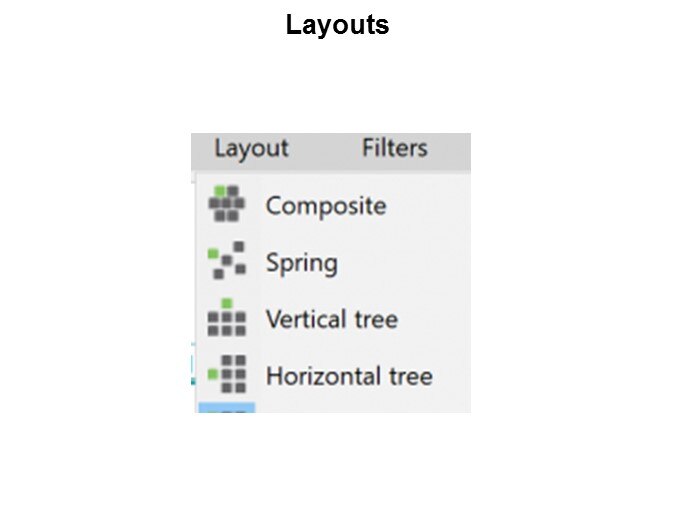

Various graphical layouts are available. Try starting with the simple Grid layout to show everything neatly organized on the screen. Then begin experimenting with the other layouts to see which visual organization depicts the network topography the best.

PTM Published on: 2019-08-05
