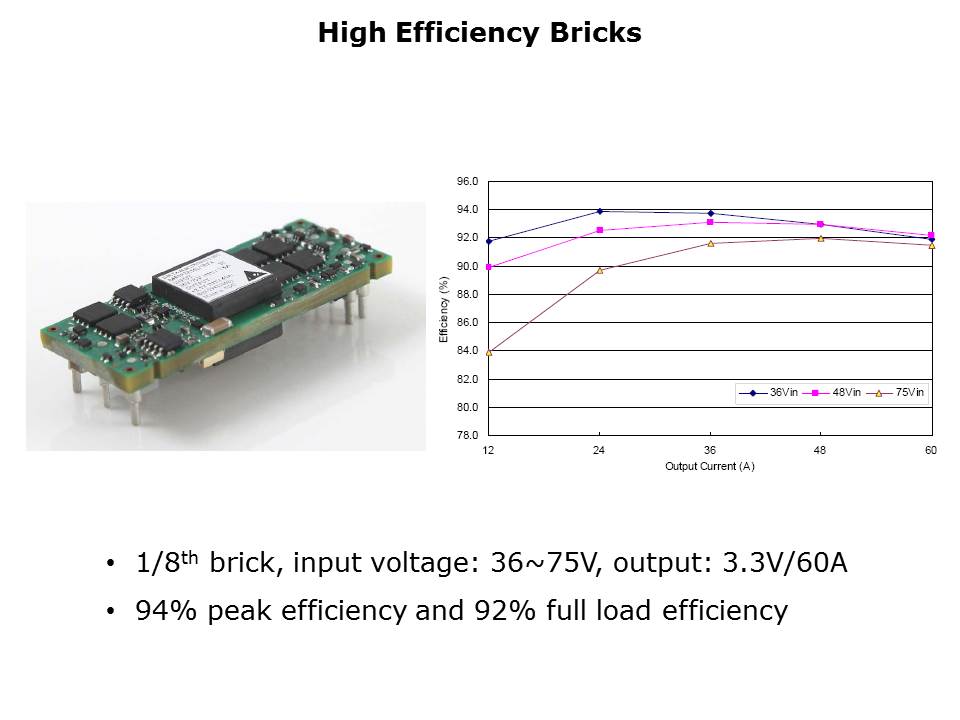

Delta’s 1/8th brick and efficiency curve is shown here. Again, there is only one integrated magnetic component on the module that serves both transformer and filter inductor functions. For this 3.3V/60A (total output power is 200W) brick, the peak efficiency reaches 94%.
