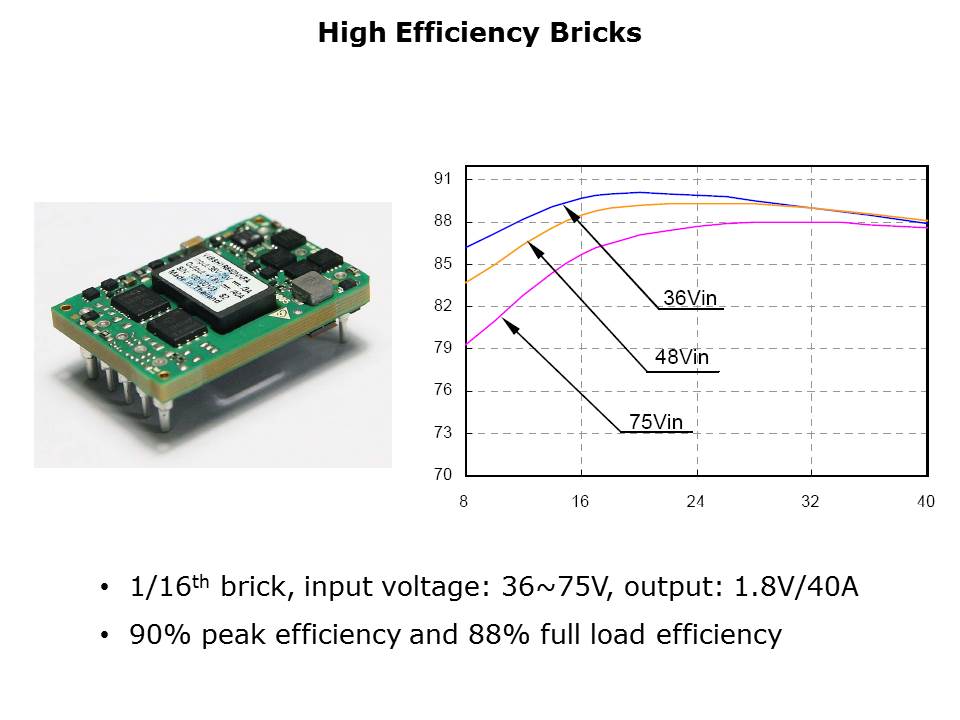

The efficiency curve of Delta’s 1/16th brick is shown here. There is only one integrated magnetic component on the module that serves as both the transformer and output filter functions. For this 1.8V, 40A brick, the peak efficiency reaches 90%.
