d75 enviro

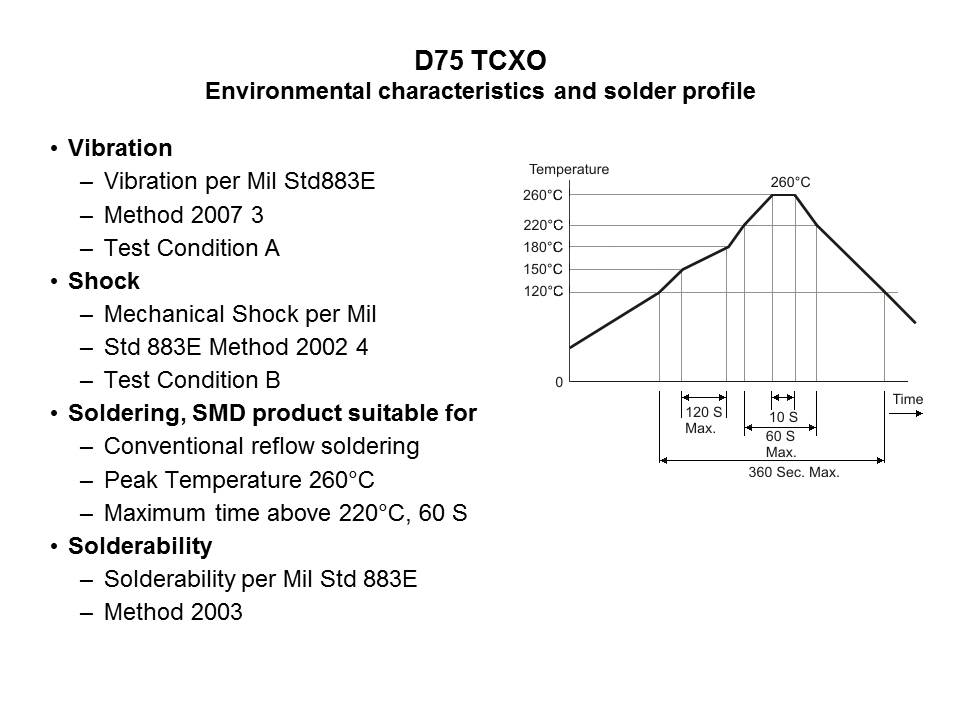

Environmental conditions the D75 will meet are as follows: vibration per Mil Standard 883E, Method 2007 3, Test Condition A. Mechanical shock per Mil Standard 883E, Method 2002 4, Test Condition B. The D75 is a surface mount product suitable for conventional reflow soldering with a peak temperature of 260ºC; the maximum time above 220ºC is 60 seconds. (See the profile shown on the right side of the slide) Solderability is per Mil Standard 883E, Method 2003.
