Slide20

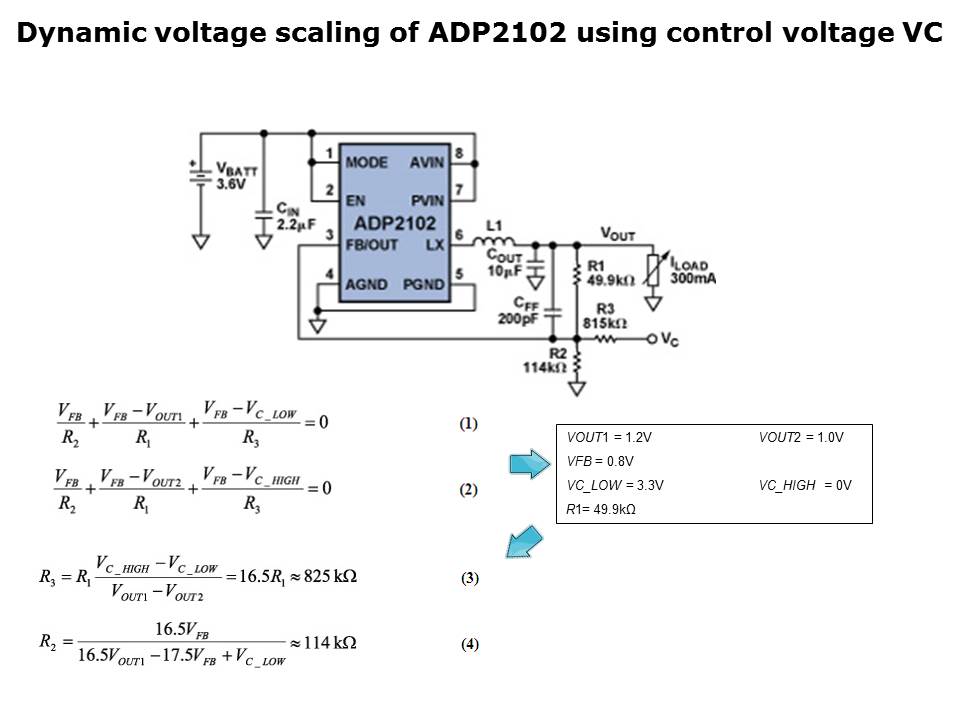

A simpler way to generate two different voltages for DVS is to use a control voltage, VC, to inject current into the feedback network through an additional resistor. Adjusting the duty cycle of the control voltage varies its average DC level. A single control voltage and resistor can thus be used to adjust the output voltage. The equations shown here are used to calculate the values of resistors R2 and R3.
