Power Integrated Modules
onsemi's power integrated modules are electronic devices integrating mostly power switching devices to maximize power delivery
onsemi's power integrated module is an electronic device that integrates mostly power switching devices to maximize power delivery with reduced footprint/size where external control and HV gate drive is required. Advanced power modules include IGBTs with hybrid body diodes, Si, or SiC, and MOSFETs of Si or SiC technology or both.
Features
- Full silicon and SiC hybrid modules
- Improved efficiency: SiC diodes and fast switching low VCE(sat) IGBT
- T-type neutral point clamped three-level inverter module
- Low thermal impedance baseplate
- I-type NPC for higher power
- Integrated bypass diodes
- Easy mounting
- Reduced inductor size
- Higher power density
- Reduced heat sink size
- Higher fsw and more compact design
- Excellent efficiency in bypass mode
Power Integrated Modules
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
 |  | NXH160T120L2Q2F2S1G | PIM POWER MODULE | 33 - Immediate | $966.76 | View Details |
 | NXH25C120L2C2SG | IGBT MODULE, CIB 1200 V, 25 A IG | 4 - Immediate | $593.66 | View Details | |
| | NXH35C120L2C2SG | IGBT MODULE, CIB 1200 V, 35 A IG | 0 - Immediate | $833.98 | View Details |
| | NXH35C120L2C2ESG | IGBT MODULE, CIB 1200 V, 35 A IG | 0 - Immediate | $651.65 | View Details |
|  | NXH40T120L3Q1SG | IGBT MODULE SUNGROW 20KW Q1PACK | 21 - Immediate | $527.72 | View Details |

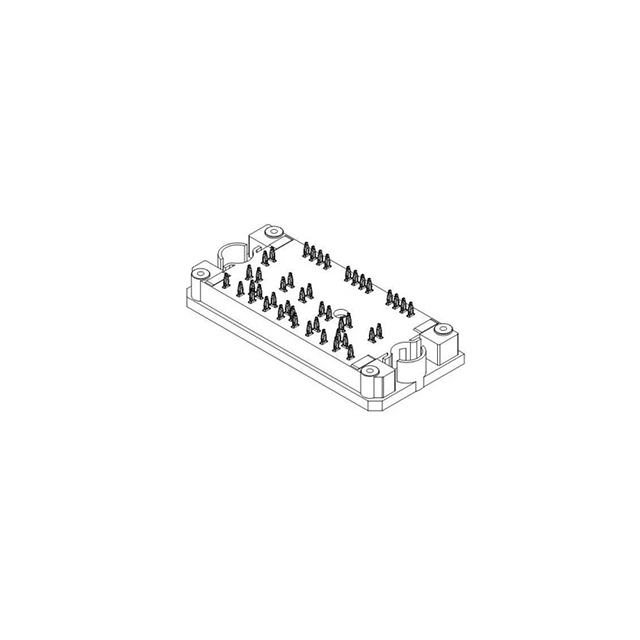

|  | NXH40T120L3Q1PG | IGBT MOD 3TNPC Q1PACK 1200V/40 | 0 - Immediate | $688.57 | View Details |
| NXH50C120L2C2ESG | IGBT MODULE, CIB 1200 V, 50 A IG | 0 - Immediate | $936.47 | View Details | |
 | NXH50C120L2C2ES1G | IGBT MOD 1200V 50A 26DIP | 0 - Immediate | $886.36 | View Details | |
|  | NXH100B120H3Q0PTG | IGBT MODULE 1200V 50A 186W 22PIM | 22 - Immediate 144 - Factory Stock | $552.19 | View Details |
| | NXH100B120H3Q0STG | IGBT MODULE 1200V 50A 186W PIM22 | 23 - Immediate 96 - Factory Stock | $517.79 | View Details |
|  | FAM65CR51DZ2 | MOSFET IPM 650V 33A 12-SSIP | 0 - Immediate | $169.15 | View Details |
|  | FAM65HR51DS2 | POWER MODULE | 73 - Immediate | $264.97 | View Details |
|  | FTCO3V455A1 | MOSFET 6N-CH 40V 150A MODULE | 0 - Immediate | $169.67 | View Details |
|  | FTCO3V85A1 | AUTOMOTIVE POWER MODULE | 56 - Immediate | $308.16 | View Details |
|  | NXV04V120DB1 | MOSFET IPM 40V 160A 19-PWRDIP | 38 - Immediate | $231.14 | View Details |
|  | NXV08V080DB1 | 3-PHASE INVERTER AUTOMOTI | 10 - Immediate 176 - Factory Stock | $247.40 | View Details |
|  | NXV08V110DB1 | MOSFET IPM 80V 19-PWRDIP MOD | 108 - Immediate 88 - Factory Stock | $285.74 | View Details |
|  | STK984-190-E | MOSFET IPM 40V 30A 24-PWRDIP MOD | 0 - Immediate | See Page for Pricing | View Details |
|  | NXH006P120MNF2PTG | MOSFET IPM 1.2KV 304A MODULE | 40 - Immediate 2940 - Factory Stock | $1,694.59 | View Details |
|  | NXH80B120MNQ0SNG | PIM POWER MODULE | 48 - Immediate 4032 - Factory Stock | $557.94 | View Details |
