Littelfuse Inc

AQxx-01FLTG Series Unidirectional TVS Diodes

Littelfuse AQxx-01FLTG series 200 W diodes in a SOD323FL package can safely absorb repetitive ESD strikes of ±30 kV without any performance degradation

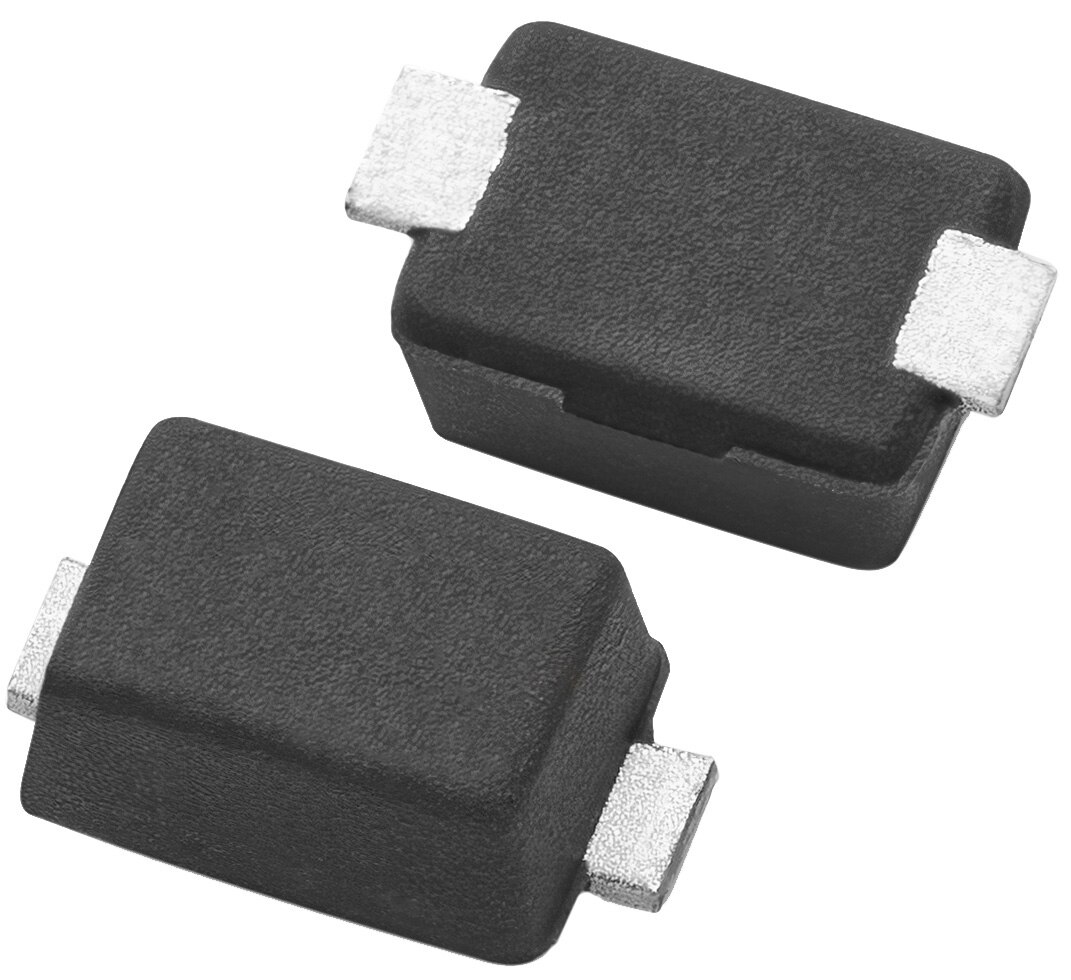

Image of Littelfuse AQxx-01FLTG Series Unidirectional TVS DiodesLittelfuse AQxx-01FLTG series unidirectional TVS diodes utilize proprietary silicon avalanche technology. These diodes provide electronic equipment with high electrostatic discharge (ESD) protection. The AQxx-01FLTG series TVS diodes can safely absorb repetitive ESD strikes of ±30 kV (contact and air discharge as defined in IEC 61000-4-2) without any performance degradation. In addition, it can safely dissipate a 200 W peak pulse power at 10/1000 μs waveform.

Features
  • ESD, IEC 61000-4-2, ±30 kV contact/air
  • ESD, ISO 10605, 330 pF 330 Ω, ±30 kV contact/air
  • EFT, IEC 61000-4-4, 40 A (5/50 ns)
  • Peak pulse power, 200 W, 10/1000 μs waveform
  • SOD323FL package
Applications
  • Battery protection
  • Computer peripherals
  • Medical equipment
  • Notebooks/desktops/servers
  • Test equipment/instrumentation

AQxx-01FLTG Series Unidirectional TVS Diodes

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
TVS DIODE 5VWM 13VC SOD323FLAQ05-01FLTGTVS DIODE 5VWM 13VC SOD323FL2818 - Immediate
3000 - Factory Stock		$5.02View Details
TVS DIODE 12VWM 25.5VC SOD323FLAQ12-01FLTGTVS DIODE 12VWM 25.5VC SOD323FL2770 - Immediate$5.10View Details
TVS DIODE 15VWM 30.5VC SOD323FLAQ15-01FLTGTVS DIODE 15VWM 30.5VC SOD323FL2580 - Immediate
6000 - Factory Stock		$5.10View Details
TVS DIODE 22VWM 42.5VC SOD323FLAQ22-01FLTGTVS DIODE 22VWM 42.5VC SOD323FL2730 - Immediate$5.10View Details
TVS DIODE 24VWM 49VC SOD323FLAQ24-01FLTGTVS DIODE 24VWM 49VC SOD323FL2900 - Immediate$5.10View Details
TVS DIODE 28VWM 62VC SOD323FLAQ28-01FLTGTVS DIODE 28VWM 62VC SOD323FL2269 - Immediate
3000 - Factory Stock		$5.10View Details
TVS DIODE 30VWM 62VC SOD323FLAQ30-01FLTGTVS DIODE 30VWM 62VC SOD323FL1675 - Immediate$5.10View Details
TVS DIODE 33VWM 68.5VC SOD323FLAQ33-01FLTGTVS DIODE 33VWM 68.5VC SOD323FL2259 - Immediate$5.10View Details
TVS DIODE 45VWM 94.5VC SOD323FLAQ45-01FLTGTVS DIODE 45VWM 94.5VC SOD323FL3000 - Immediate$5.27View Details
TVS DIODE 60VWM 116VC SOD323FLAQ60-01FLTGTVS DIODE 60VWM 116VC SOD323FL2876 - Immediate$5.27View Details
Published: 2024-09-26
