            Metal-Composite Power Inductors
                    KEMET’s new power inductors offer advantages over traditional ferrite inductors


Image of Kemet's Metal-Composite Power Inductors KEMET's new power inductors offer advantages over traditional ferrite inductors. The magnetic metal-composite core offers high-permeability and high-saturation flux density for a stronger magnetic field. Another advantage is lower loss, resulting in a more efficient device.

Application Brief: Metal Composite Inductors

Features

Improved power supply efficiency with composite metal core
Metal cores reduce core losses at light loads, improving power supply efficiency
Used as part of a filter or for energy storage
High permeability for higher inductance with lower DC resistance
Low losses at higher switching frequencies
Molded metal structure reduces acoustic noise
Higher current power and saturation in smaller packages
Available in tape and reel

Applications

Filtering for decoupling networks
CPU, GPU, and memory voltage regulator modules (VRMs)
Laptops, tablets, and servers
HDTVs, game consoles, and Blu-Ray players

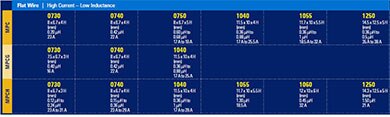

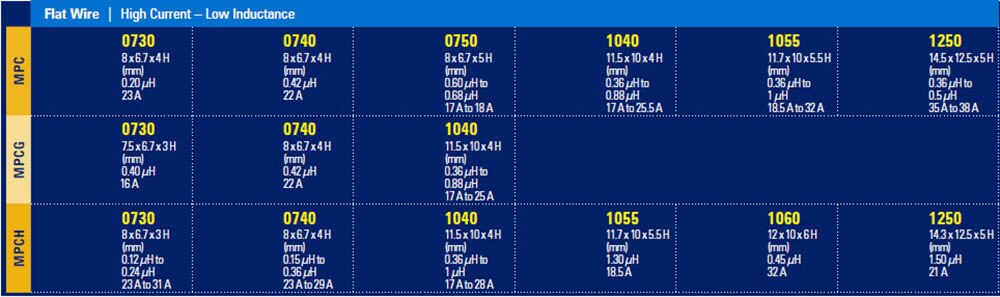

Flat Wire:

High Current - Low Inductance

Round Wire:

Low Current - High Inductance

Metal-Composite Power Inductors

Manufacturer Part Number	Description	Current Rating (Amps)	Shielding	DC Resistance (DCR)	Available Quantity
MPLCG0630L4R7	FIXED IND 4.7UH 5.5A 0.041OHM SM	5.5 A	Shielded	41mOhm Max	4492 - Immediate	View Details
MPCG1040LR45	FIXED IND 450NH 25A 1.1 MOHM SMD	25 A	Shielded	1.1mOhm Max	0 - Immediate 1900 - Marketplace	View Details
MPLCG0530L1R0	FIXED IND 1UH 7.4A 0.0146OHM SMD	7.4 A	Shielded	14.6mOhm Max	4820 - Immediate	View Details
MPLCG0630LR47	FIXED IND 470NH 15.8A 0.005OHM	15.8 A	Shielded	5mOhm Max	3827 - Immediate	View Details
MPCH0740LR15	FIXED IND 150NH 29A 0.93MOHM SMD	29 A	Shielded	0.93mOhm	248 - Immediate	View Details
MPC0750LR60C	FIXED IND 600NH 17A 2.3 MOHM SMD	17 A	Shielded	2.3mOhm Max	0 - Immediate 7000 - Marketplace	View Details
MPCG0740LR42	FIXED IND 420NH 22A 1.55MOHM SMD	22 A	Shielded	1.55mOhm Max	750 - Immediate	View Details
MPC1055LR36C	FIXED IND 360NH 32A 0.75MOHM SMD	32 A	Shielded	0.75mOhm	0 - Immediate	View Details
MPCH1055L1R3	FIXED IND 1.3UH 18.5A 2.3MOHM SM	18.5 A	Shielded	2.3mOhm	980 - Immediate	View Details
MPLCG0630L3R3	FIXED IND 3.3UH 6.5A 0.03OHM SMD	6.5 A	Shielded	30mOhm Max	5424 - Immediate	View Details
MPC1055L1R0C	FIXED IND 1UH 18.5A 2.3 MOHM SMD	18.5 A	Shielded	2.3mOhm Max	0 - Immediate	View Details
MPCH1060LR45	FIXED IND 450NH 32A 0.76MOHM SMD	32 A	Shielded	0.76mOhm	3298 - Immediate	View Details
MPC1250LR50C	FIXED IND 500NH 35A 0.8 MOHM SMD	35 A	Shielded	0.8mOhm	4491 - Immediate	View Details
MPC1040LR36C	FIXED IND 360NH 25.5A 1.05 MOHM	25.5 A	Shielded	1.05mOhm Max	0 - Immediate	View Details
MPC1040LR45C	FIXED IND 450NH 25A 1.1 MOHM SMD	25 A	Shielded	1.1mOhm Max	818 - Immediate	View Details
MPCH1250L1R5	FIXED IND 1.5UH 21A 2.2 MOHM SMD	21 A	Shielded	2.2mOhm Max	0 - Immediate	View Details
MPC0740LR42C	FIXED IND 420NH 22A 1.55MOHM SMD	22 A	Shielded	1.55mOhm Max	1997 - Immediate	View Details
MPC0750LR68C	FIXED IND 680NH 18A 2.2 MOHM SMD	18 A	Shielded	2.2mOhm Max	0 - Immediate	View Details
MPC1040LR56C	FIXED IND 560NH 23A 1.3 MOHM SMD	23 A	Shielded	1.3mOhm Max	0 - Immediate	View Details
