Isolated Open-Frame DC/DC Converters

Delta introduces its 1/32 to 1/2 brick PCB-mounted power modules

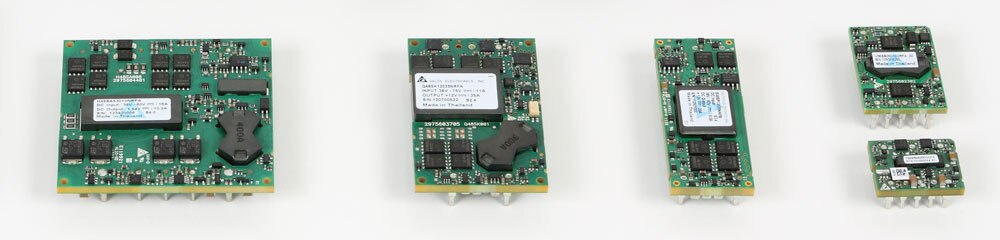

Image of Delta's Isolated Open Frame DC/DC ConvertersDelta offers isolated open-frame type DC / DC power modules that cover the complete range of DOSA-compatible format from 1/32 brick to 1/2 brick with industrial footprint and pinout, 18 V to 75 V input voltage range, and output power up to 600 W.

Creative design technology and optimization of component placement allow these converters to possess outstanding electrical and thermal performance, as well as extremely high reliability under highly stressful operating conditions. The high-density and high-efficiency of these converters with advanced performance, flexibility, and reliability, makes them ideal for the telecom, networking, and datacenter marketplaces.

1/32 Brick

ImageManufacturer Part NumberDescriptionAvailable QuantityPrice
DC DC CONVERTER 12V 50WV36SE12004NRFADC DC CONVERTER 12V 50W0 - Immediate$230.89View Details
DC DC CONVERTER 5V 50WV36SE05010NRFADC DC CONVERTER 5V 50W0 - Immediate$230.89View Details
DC DC CONVERTER 3.3V 50WV36SE3R315NRFADC DC CONVERTER 3.3V 50W0 - Immediate$194.59View Details
DC DC CONVERTER 5V 100WV48SH05017NNFADC DC CONVERTER 5V 100W0 - ImmediateSee Page for PricingView Details
DC DC CONVERTER 3.3V 83WV48SC3R325NRFADC DC CONVERTER 3.3V 83W0 - Immediate$233.13View Details
DC DC CONVERTER 3.3V 66WV48SC3R320NRFADC DC CONVERTER 3.3V 66W0 - Immediate$209.39View Details
DC DC CONVERTER 3.3V 50WV48SC3R315NRFADC DC CONVERTER 3.3V 50W0 - Immediate$209.39View Details

1/16 Brick

Manufacturer Part NumberDescriptionAvailable QuantityPrice
T48SR05005NNFADC DC CONVERTER 5V 25W0 - Immediate$194.74View Details
T48SR3R307NNFADC DC CONVERTER 3.3V 25W0 - Immediate$194.74View Details

1/8 Brick

ImageManufacturer Part NumberDescriptionAvailable QuantityPrice
DC DC CONVERTER 12V 240WE48SP12020NRFADC DC CONVERTER 12V 240W0 - Immediate$456.78View Details
DC DC CONVERTER 3.3V 66WE36SR3R320NRFHDC DC CONVERTER 3.3V 66W0 - Immediate$351.50View Details
DC DC CONVERTER 12V 48WE36SR12004NKFADC DC CONVERTER 12V 48W0 - ImmediateSee Page for PricingView Details
DC DC CONVERTER 3.3V 66WE48SR3R320NRFADC DC CONVERTER 3.3V 66W0 - ImmediateSee Page for PricingView Details
DC DC CONVERTER 12V 120WE48SH12010NRFADC DC CONVERTER 12V 120W88 - Immediate$344.37View Details
DC DC CONVERTER 5V 120WE48SH05020NRFADC DC CONVERTER 5V 120W912 - Immediate$292.72View Details
DC DC CONVERTER 5V 75WE36SR05015NRFADC DC CONVERTER 5V 75W0 - Immediate$320.06View Details
DC DC CONVERTER 5V 125WE36SC05025NRFADC DC CONVERTER 5V 125W114 - Immediate$301.18View Details
DC DC CONVERTER 12V 96WE48SC12008NRFADC DC CONVERTER 12V 96W72 - Immediate$254.71View Details
DC DC CONVERTER 12V 84WE48SR12007NRFADC DC CONVERTER 12V 84W0 - ImmediateSee Page for PricingView Details
DC DC CONVERTER 3.3V 120WE48SH3R330NRFADC DC CONVERTER 3.3V 120W0 - Immediate$286.85View Details
DC DC CONVERTER 12V 108WE36SC12009NRFADC DC CONVERTER 12V 108W0 - Immediate$295.51View Details
DC DC CONVERTER 3.3V 116WE36SC3R335NRFADC DC CONVERTER 3.3V 116W0 - ImmediateSee Page for PricingView Details
DC DC CONVERTER 12V 240WE48SD12020NNFGDC DC CONVERTER 12V 240W0 - ImmediateSee Page for PricingView Details

Quarter Brick

ImageManufacturer Part NumberDescriptionAvailable QuantityPrice
DC DC CONVERTER 12V 400WQ48SQ12033NRFHDC DC CONVERTER 12V 400W94 - Immediate$581.67View Details
DC DC CONVERTER 12V 204WQ36SR12017NRFADC DC CONVERTER 12V 204W29 - Immediate$445.69View Details
DC DC CONVERTER 12V 400WQ48SQ12033NRFADC DC CONVERTER 12V 400W0 - Immediate$466.28View Details
DC DC CONVERTER 12V 300WQ48SQ12025NRFADC DC CONVERTER 12V 300W0 - Immediate$493.23View Details
DC DC CONVERTER 12V 216WQ48SQ12018NRFADC DC CONVERTER 12V 216W0 - ImmediateSee Page for PricingView Details
DC DC CONVERTER 11.8V 400WQ48SG12034NRFADC DC CONVERTER 11.8V 400W0 - Immediate$481.04View Details
DC DC CONVERTER 11.8V 500WQ48SG12042NRFHDC DC CONVERTER 11.8V 500W0 - ImmediateSee Page for PricingView Details
DC DC CONVERTER 11.8V 400WQ48SG12034NRFCDC DC CONVERTER 11.8V 400W0 - Immediate$481.04View Details
DC DC CONVERTER 11.8V 400WQ48SG12034NRFBDC DC CONVERTER 11.8V 400W0 - Immediate$481.04View Details
DC DC CONVERTER 12V 300WQ48SQ12025NRFHDC DC CONVERTER 12V 300W0 - Immediate$505.98View Details

Half Brick

ImageManufacturer Part NumberDescriptionAvailable QuantityPrice
DC DC CONVERTER 28V 450WH48SA28016NYFHDC DC CONVERTER 28V 450W0 - ImmediateSee Page for PricingView Details
Published: 2015-08-19
