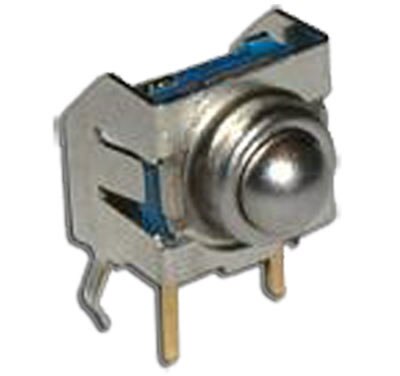

STJV Series IP67 Right Angle Through-Hole Tact Switches with Dome Actuator
CIT Relay & Switch's right angle through-hole PC pin tact switch features an IP67 rating
With IP67 sealing degree, CIT Relay & Switch's STJV series right angle tact switch offers a multi-directional dome actuator with actuation force from 130 gF up to 300 gF and actuation travel of 1.6 mm. The STVJ series tact switch is available with gold or silver contact options.
Specifications
- Contact arrangement: SPST, momentary function
- Electrical rating: 50 mA at 48 VDC
- Electrical life: 100,000 cycles on
- Contact resistance: less than 50 milliohms
- IP67 process sealed
- Multi-directional actuator
- Actuator travel: 1.6 ±0.25 mm
- Dielectric strength: 500 VRMS
- Operating temperature: -40°C to +85°C
- Right angle
- Gold or silver contact option
- Multiple actuation force options
STJV Series IP67 Right Angle Through-Hole Tact Switches with Dome Actuator
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
 |  | STJVF130Q | SWITCH TACTILE SPST-NO 0.05A 48V | 65 - Immediate | $9.77 | View Details |
| | STJVF200Q | SWITCH TACTILE SPST-NO 0.05A 48V | 70 - Immediate | $9.77 | View Details |
| | STJVF300Q | SWITCH TACTILE SPST-NO 0.05A 48V | 179 - Immediate | $9.77 | View Details |
Published: 2022-11-28
Hong Kong, China
