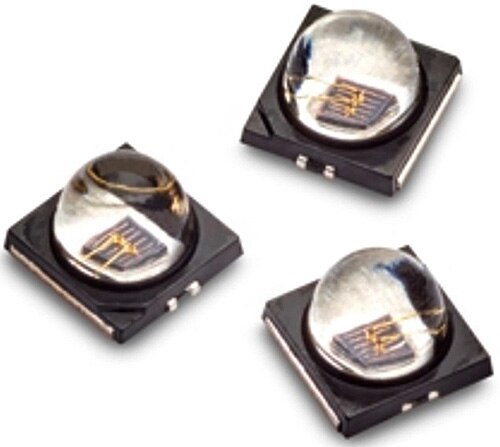

            ARE6-xxx1-0xx00 Series High Power IR LEDs
                    Broadcom’s high-power IR LEDs in a 3.45 mm × 3.45 mm surface-mount platform are suitable for a wide variety of applications


Broadcom’s ARE6-xxx1-0xx00 series high-power IR LEDs are available in 855 nm and 945 nm peak wavelength ranges, appropriate for specific devices, such as infrared illumination, surveillance systems, CCTV, and gesture recognition. Packaged in a 3.45 mm × 3.45 mm surface-mount platform, together with viewing angles of 50°, 80°, and 140° lens optics options, the high-power IR LEDs are suitable for a wide variety of applications.

The package is compatible with the reflow soldering process. The LEDs are packed in tape and reel to facilitate easy pick-and-place assembly.

Features

Available in peak wavelengths of 855 nm and 945 nm
High radiant intensity
High radiant power
Low forward voltage

Typical viewing angle: 50°, 80°, and 140°
Compatible with industrial reflow soldering process
MSL 1

Applications

Light curtains
Infrared illumination for cameras
Surveillance systems

Machine vision systems
Eye tracking systems
