Bourns Inc.

SRP6030VA and SRP1040VA Series Inductors

Bourns’ SRP6030VA and SRP1040VA are AEC-Q200 compliant high-temperature shielded power inductors

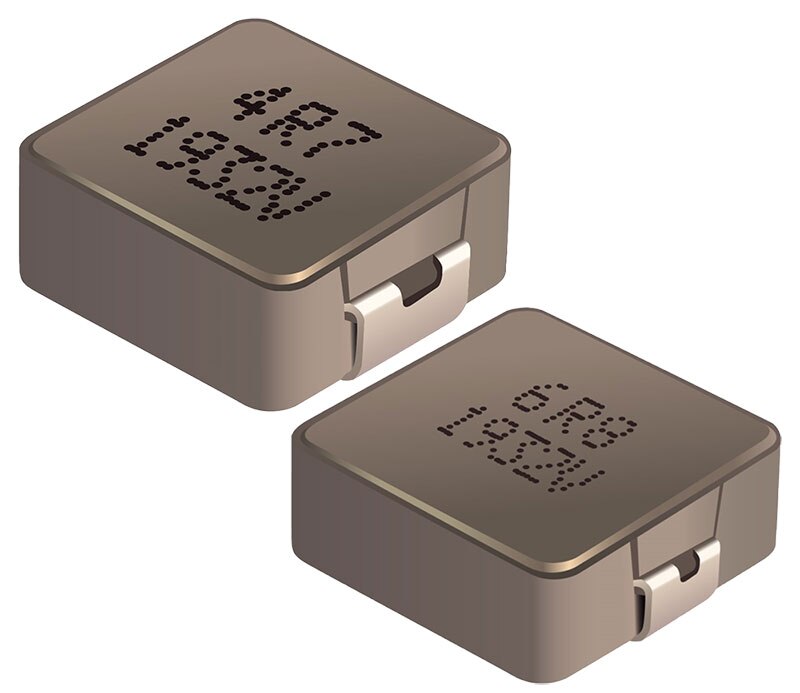

Image of Bourns' SRP6030VA and SRP1040VA Series InductorsBourns' SRP6030VA and SRP1040VA series high temperature shielded power inductors are built with a metal alloy powder formulation and round enamel coated copper wire. The metal alloy powder formulation allows for an extremely high operating temperature of +180°C (including self-heating), which makes these AEC-Q200 compliant inductors ideal for many high-temperature environments. These inductors feature low DC resistance, high heating/saturation current, low buzz noise, excellent temperature stability, and shielded construction for low magnetic radiation.

These inductors are well suited for DC/DC converters and power supplies in consumer, industrial, low/medium risk medical, and telecom applications where higher inductor reliability at elevated operating temperatures may be required.

Features
  • Shielded construction
  • Metal alloy powder core
  • High saturation current
  • Low buzz noise
  • High operating temperature: +180°C
  • AEC-Q200 compliant
  • RoHS compliant and halogen-free
Applications
  • DC/DC converters
  • Power supplies

SRP1040VA Series Inductors

ImageManufacturer Part NumberDescriptionToleranceAvailable QuantityPriceView Details
FIXED IND 2.2UH 18A 7.2MOHM SMDSRP1040VA-2R2MFIXED IND 2.2UH 18A 7.2MOHM SMD±20%526 - Immediate$12.92View Details
FIXED IND 22UH 6A 72 MOHM SMDSRP1040VA-220MFIXED IND 22UH 6A 72 MOHM SMD±20%505 - Immediate$12.92View Details
FIXED IND 33UH 5A 117.7MOHM SMDSRP1040VA-330MFIXED IND 33UH 5A 117.7MOHM SMD±20%432 - Immediate$12.92View Details
FIXED IND 68UH 3.5A 240MOHM SMDSRP1040VA-680MFIXED IND 68UH 3.5A 240MOHM SMD±20%262 - Immediate$12.92View Details
FIXED IND 6.8UH 10.5A 22.3 MOHMSRP1040VA-6R8MFIXED IND 6.8UH 10.5A 22.3 MOHM±20%722 - Immediate$12.92View Details
FIXED IND 1UH 27A 3.07 MOHM SMDSRP1040VA-1R0MFIXED IND 1UH 27A 3.07 MOHM SMD±20%435 - Immediate$12.92View Details
FIXED IND 1.5UH 22A 4.5MOHM SMDSRP1040VA-1R5MFIXED IND 1.5UH 22A 4.5MOHM SMD±20%396 - Immediate$12.92View Details
FIXED IND 3.3UH 15A 11.8MOHM SMDSRP1040VA-3R3MFIXED IND 3.3UH 15A 11.8MOHM SMD±20%571 - Immediate$12.92View Details
FIXED IND 4.7UH 13A 15.3MOHM SMDSRP1040VA-4R7MFIXED IND 4.7UH 13A 15.3MOHM SMD±20%41 - Immediate$12.92View Details
FIXED IND 5.6UH 12A 17.5MOHM SMDSRP1040VA-5R6MFIXED IND 5.6UH 12A 17.5MOHM SMD±20%41 - Immediate$12.92View Details

SRP6030VA Series Inductors

ImageManufacturer Part NumberDescriptionToleranceAvailable QuantityPriceView Details
FIXED IND 6.8UH 6A 50 MOHM SMDSRP6030VA-6R8MFIXED IND 6.8UH 6A 50 MOHM SMD±20%927 - Immediate$11.36View Details
FIXED IND 5.6UH 6.5A 42MOHM SMDSRP6030VA-5R6MFIXED IND 5.6UH 6.5A 42MOHM SMD±20%2613 - Immediate$11.36View Details
FIXED IND 4.7UH 7A 42 MOHM SMDSRP6030VA-4R7MFIXED IND 4.7UH 7A 42 MOHM SMD±20%1793 - Immediate$11.36View Details
FIXED IND 15UH 4.1A 114MOHM SMDSRP6030VA-150MFIXED IND 15UH 4.1A 114MOHM SMD±20%384 - Immediate$11.36View Details
FIXED IND 2.2UH 11A 25.8MOHM SMDSRP6030VA-2R2MFIXED IND 2.2UH 11A 25.8MOHM SMD±20%329 - Immediate$11.36View Details
FIXED IND 560NH 19A 4.8MOHM SMDSRP6030VA-R56MFIXED IND 560NH 19A 4.8MOHM SMD±20%2990 - Immediate$11.36View Details
FIXED IND 820NH 16A 6.8MOHM SMDSRP6030VA-R82MFIXED IND 820NH 16A 6.8MOHM SMD±20%959 - Immediate$11.36View Details
FIXED IND 680NH 17A 5.6MOHM SMDSRP6030VA-R68MFIXED IND 680NH 17A 5.6MOHM SMD±20%922 - Immediate$11.36View Details
FIXED IND 470NH 20A 4 MOHM SMDSRP6030VA-R47MFIXED IND 470NH 20A 4 MOHM SMD±20%881 - Immediate$11.36View Details
FIXED IND 1UH 15A 8 MOHM SMDSRP6030VA-1R0MFIXED IND 1UH 15A 8 MOHM SMD±20%353 - Immediate$11.36View Details
Published: 2020-04-14
