Drive Performance, Maximize Efficiency in 48V Systems with Allegro solutions

Allegro offers a broad array of sensor and power IC products ready for use in the design of 48V systems across a myriad of automotive, industrial, clean energy and data center applications.

Unmatched Energy Efficiency

Reduced Power Loss: By operating at a higher voltage, Allegro's 48V solutions drastically reduce energy loss compared to conventional 12V systems. This translates to a tangible increase in fuel economy for mild hybrids, significantly extends the range for all electrified vehicles and improves energy conversion efficiency in solar inverters.
Higher Power Density: Allegro’s highly integrated 48V solutions enable higher power density space compared to competitive solutions. This translates to further driving range and lowers energy loss in clean energy systems.

Lightweight Design, Enhanced Performance

Weight Reduction and fewer components: The lower current requirements of 48V systems, coupled with Allegro's innovative design approaches, allow for thinner and lighter wiring harnesses and fewer overall components.
Design Flexibility: Allegro's compact and integrated 48V solutions provide engineers with greater flexibility in their designs, enabling the development of more compact solutions without compromising on performance.

Motor and Gate Drive Units
Current Sensors
Isolated Gate Drive Units
Evaluation Boards

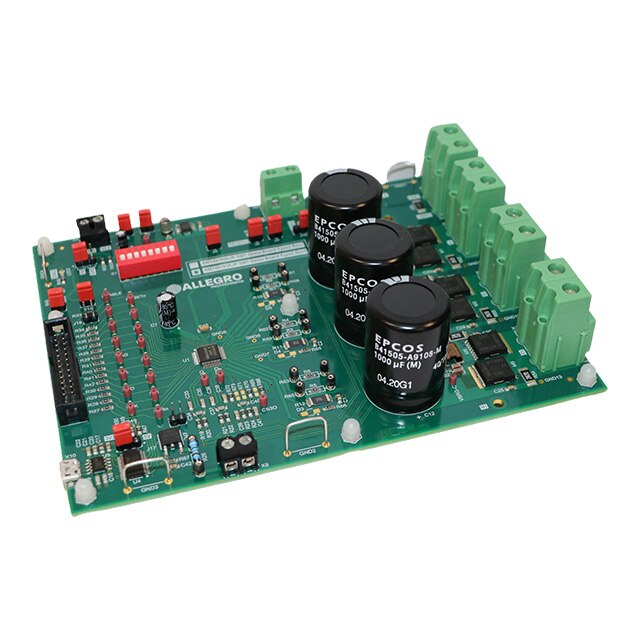

AMT49100/AMT49101

80V Operational Three Phase BLDC Driver for automotive 48V battery systems with advanced diagnostics and verification features. Architected specifically for safety systems by offering small footprint 48 lead 7x7 QFP package

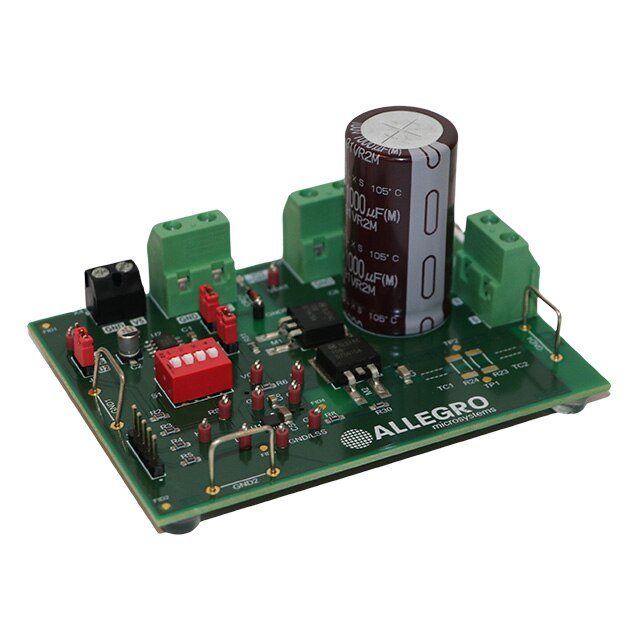

A89500

100V half bridge for 48V system with fast switching bootstrap gate driver, integrated bootstrap diode in a small 3x3 DFN package to minimize PCB space.

A89103

N-channel power MOSFET driver capable of controlling five MOSFETs to provide motor disconnect and supply isolation in 12 and 48V three phase BLDC applications. The device includes additional drivers for battery disconnect and reverse battery isolation

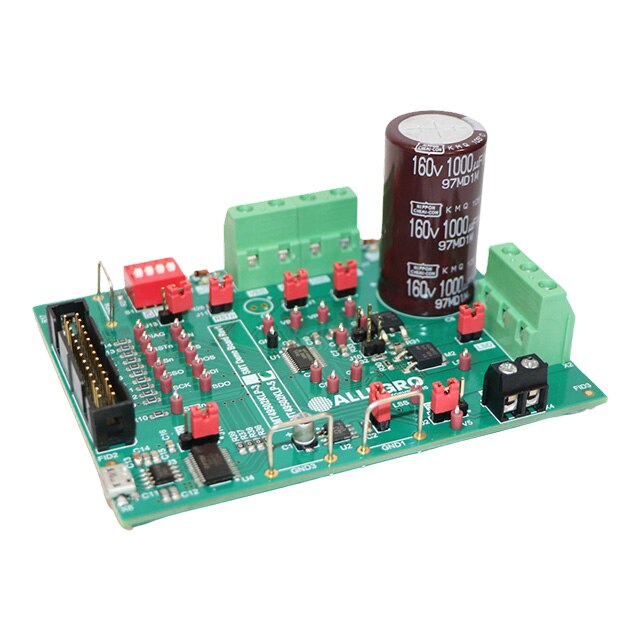

AMT49502

The AMT49502 is an 80V rated half-bridge gate driver that can operate in both 12V and 48V systems with a 5.5V to 80V operational rating.

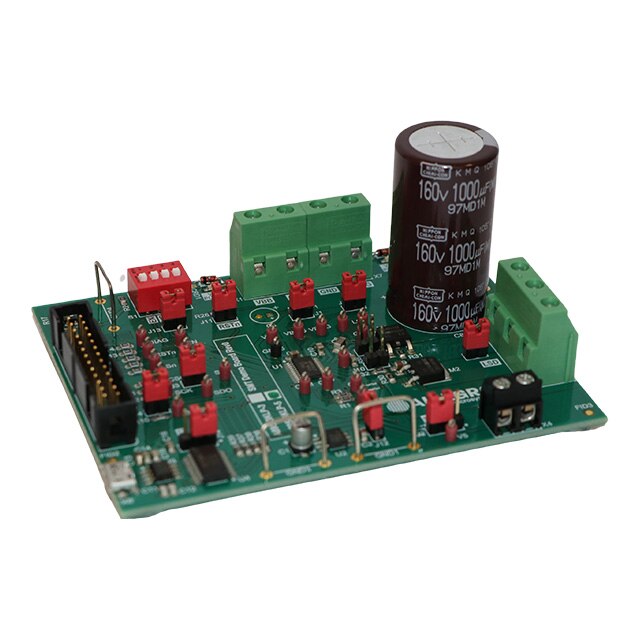

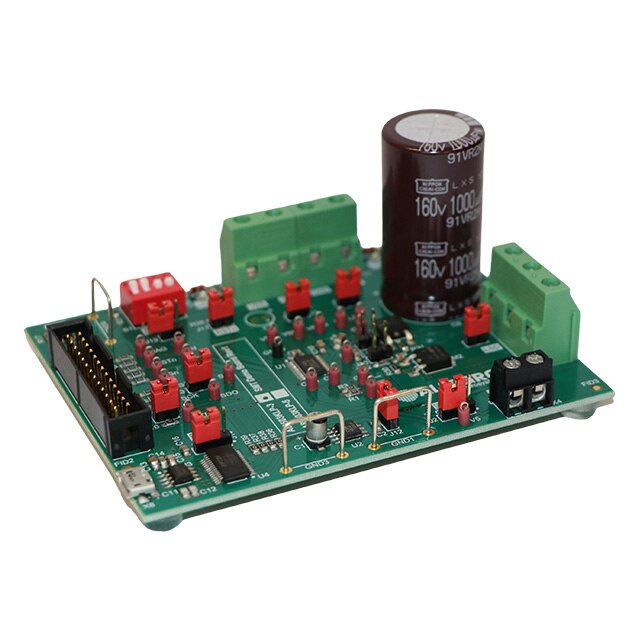

A89503

The A89503 is an ASIL Half Bridge Driver designed to operate for 12V and 48V battery systems and offers extensive diagnostic features. The A89503 enables loads to be safely connected between the high and low side outputs for application such as xEV Dog Clutches.

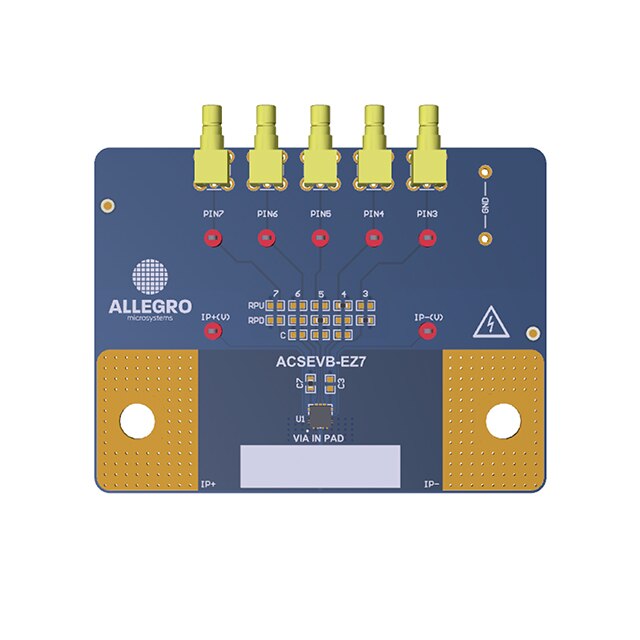

ACS37220

Ultra-low-Resistance (0.1mOhms) current sensor in 4x4 QFN with up to +/-200ARMS Operation
100V working voltage isolation & more robust voltage transient performance vs. shunts

ACS71240

5 V and 3.3 V operation components are factory-trimmed and optimized for 5 V or 3.3 V operation, providing customers with flexibility throughout the design cycle
AEC-Q100 qualified automotive-grade; facilitates system level certification

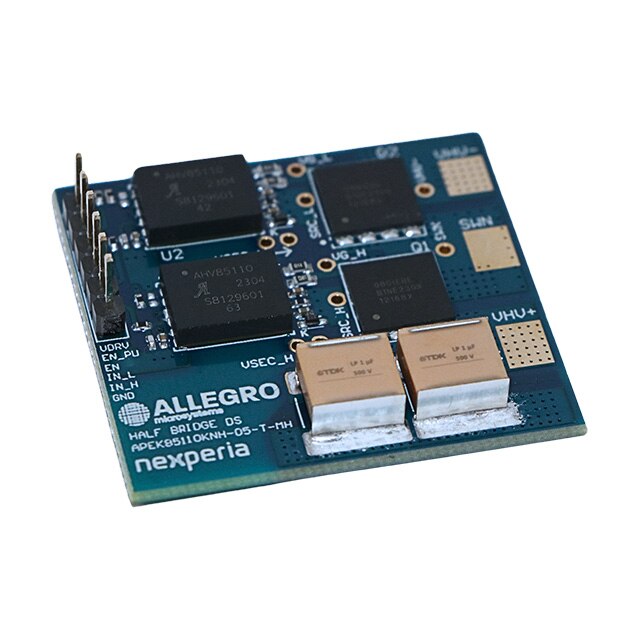

AHV85110

Self-powered isolated GaN drivers eliminate need for external bootstrap circuits, simplifies designs and reduces EMI leading to 50% BOM Reduction, 50% Higher Efficiency and 10x Lower Noise.

AHV85111

AHV85111 isolated gate driver is optimized for driving GaN FETs in multiple applications and topologies. An isolated dual positive/negative output bias supply is integrated into the driver, eliminating the need for an external gate drive auxiliary bias supply or a high-side bootstrap.
