LT375758-Slide6

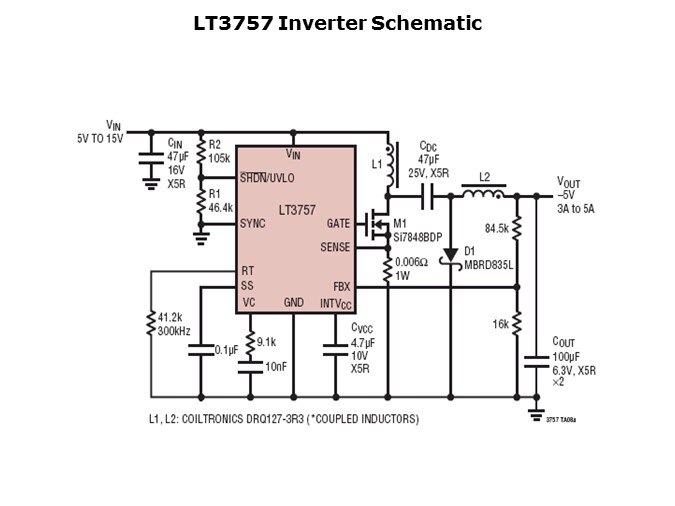

This schematic shows the LT3757 used as an inverter (Ćuk converter) operating from a 5V to 15V input and producing an output of -5V at up to 5A. The FBX (feedback) pin accepts a negative feedback voltage in this design case.

PTM Published on: 2011-05-13
