EPC9101: 1.2V @ 18A, 9 ~ 18V in

Summary

The EPC9101 demonstration board is a 1.2 V output, 1 MHz buck converter with an 18 A maximum output current and 8 V to 19 V input voltage range. The demonstration board features the EPC2014 and EPC2015 enhancement mode field effect transistors (eGaN® FETs), as well as the first eGaN FET specific integrated circuit gate driver – the Texas Instruments LM5113. The LTC3833 from Linear Tech controls the circuit.

The EPC9101 board is intended to showcase the performance that can be achieved using the eGaN FETs and eGaN gate driver together.

The EPC9101 demonstration board is 3” square and contains a fully closed loop buck converter.

Specifications

Manufacturer	EPC
Category	AC/DC and DC/DC Conversion
Sub-Category	DC/DC SMPS - Single Output
Eval Board Part Number	917-1024-ND
Eval Board Supplier	EPC
Eval Board	Board not Stocked
Topology	Step Down
Outputs and Type	1 Non-Isolated
Voltage Out: Factory Set	1.2 V
Current Out	18 A
Voltage In	8 ~ 19 V

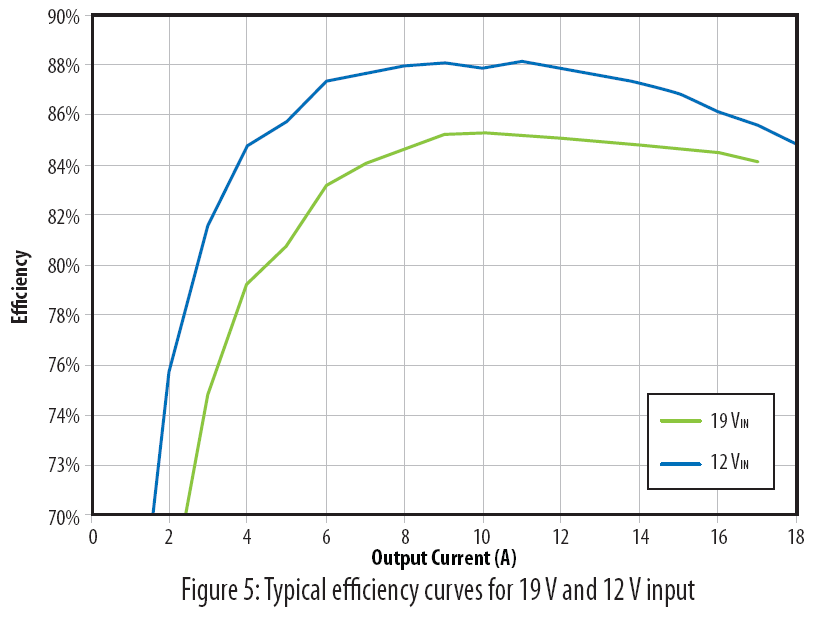

Efficiency @ Conditions	>86%, 12V in, 1.2V @ 5 ~ 16 A >84%, 19V in, 1.2V @ 7 ~ 17 A
Voltage Out Range	- Not Given
Features	Current Foldback Protection Current Limit (Adj. or Fixed) Over Voltage Protection Power Good Output Soft Start Synchronizable Voltage Tracking
Switching Frequency	1 MHz
Standby Current [Typical]
Quiescent Current [Typical]
Component Count + Extras	43 + 5
Internal Switch	No
Design Author	EPC
Application / Target Market	Computers Point of Load (PoL)
Standby Current [Maximum]
Quiescent Current [Maximum]
Main I.C. Base Part	EPC2014 EPC2015
Date Created By Author
Date Added To Library	2025-10
