RT-Slide5

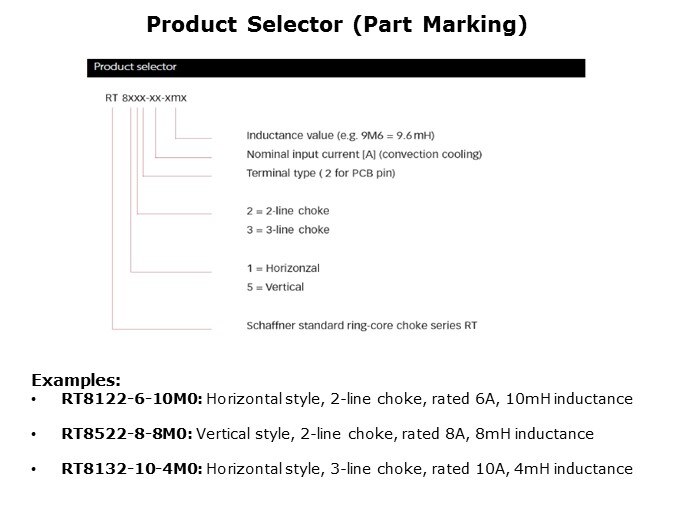

Part numbering begins with the letters “RT” followed by the ring core material code (8), mounting orientation (1 or 5), number of lines (2 or 3) and PCB mounting code (2). This is then followed by current rating in Amps and nominal inductance in milli-Henry for each RT choke. Part number examples are shown here.

PTM Published on: 2018-05-08
