RT-Slide2

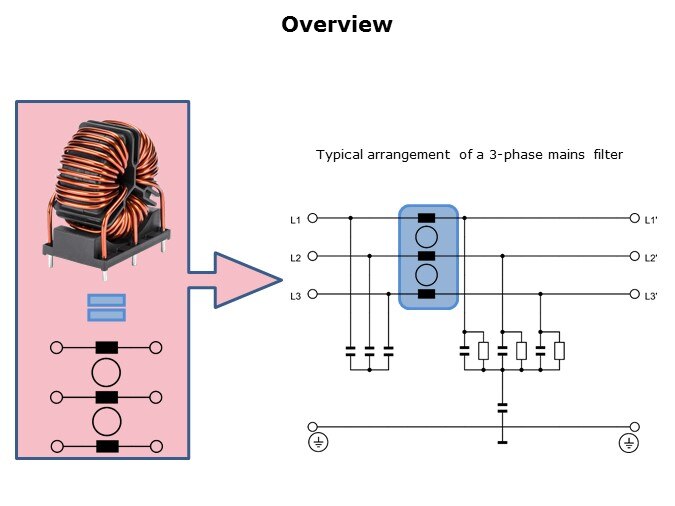

The RT series of chokes are typically made of two or three windings, over a ferrite ring core, offering current-compensated inductances. They come in an open frame design, based on a plastic bobbin with UL94-V0 flammability rating and PCB pins suitable for through-hole assembly. The RT chokes mainly attenuate common-mode Radio Frequency Interference (RFI). However, the stray inductances also help attenuation of differential mode interference. In combination with suitable suppression capacitors, designers can achieve high performance RFI filtering for both AC and DC applications.

PTM Published on: 2018-05-08
