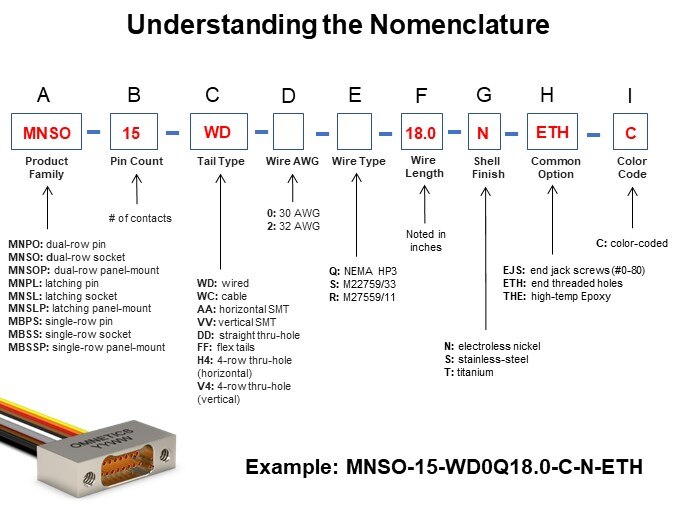

Understanding the Nomenclature

This slide illustrates the breakdown of a typical Omnetics Nano-D part number. As shown here, there is a vast array of variations to the product series. It is best to start with this typical part number and incrementally investigate variations to meet specific needs. This specific nomenclature calls out a 15-pin female Nano-D with 18 inches of 30 AWG color-coded, housed in a nickel-plated shell and machined with end-threaded holes.
