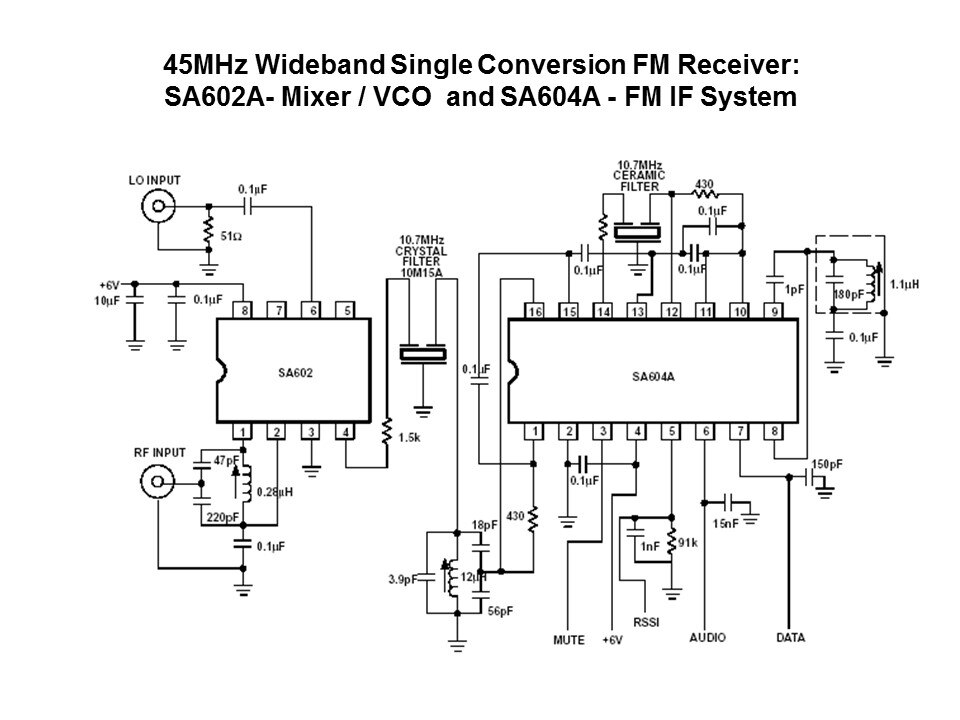

This is the full circuit schematic of the 45 MHz wideband single conversion receiver. Narrower 10.7MHz IF ceramic filters may be chosen to enhance receiver sensitivity for smaller OBW (Occupied Bandwidth).
