MMA845xQ-Slide9

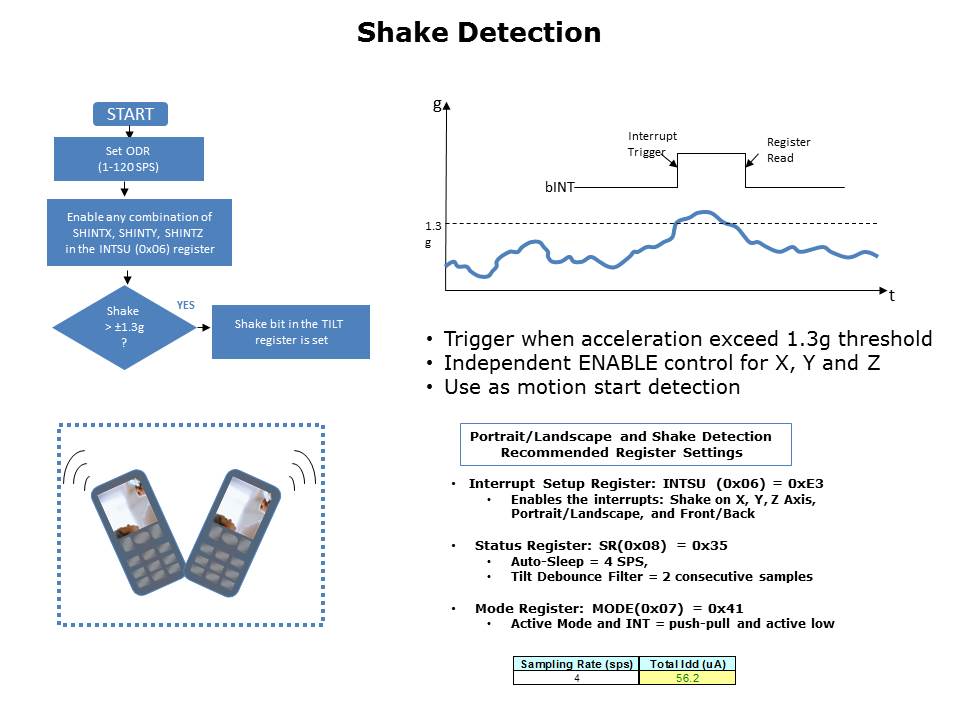

Shake detection is performed when the shake axis is enabled on any of the three axes by enabling the SHINTX, SHINTY, and/or SHINTZ in the INTSU (0x06) register. All three axes are tested independently for a shake interrupt but there is one common shake bit interrupt in the TILT (0x03) register.

PTM Published on: 2012-08-17
