LPC51U68-Slide11

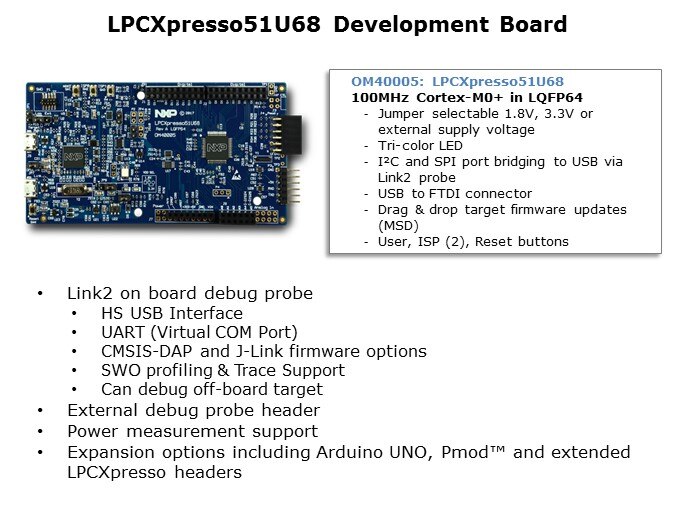

The LPCXpresso51U68 board has been designed to enable evaluation of and prototyping with the LPC51U68 MCU – leveraging the high-performance Cortex-M0+ core, power-efficiency, and cost sensitive capabilities provided by the MCU device. The board also features an on-board, CMSIS-DAP / SEGGER J-Link compatible debug probe. In addition, the board can be used with a wide range of development tools, including NXP’s MCUXpresso Integrated Development Environment or IDE, and other popular toolchains including IAR and Keil.

PTM Published on: 2018-07-26
