MAX11300 Programmable Mixed Signal IO Pt 2 Slide 5

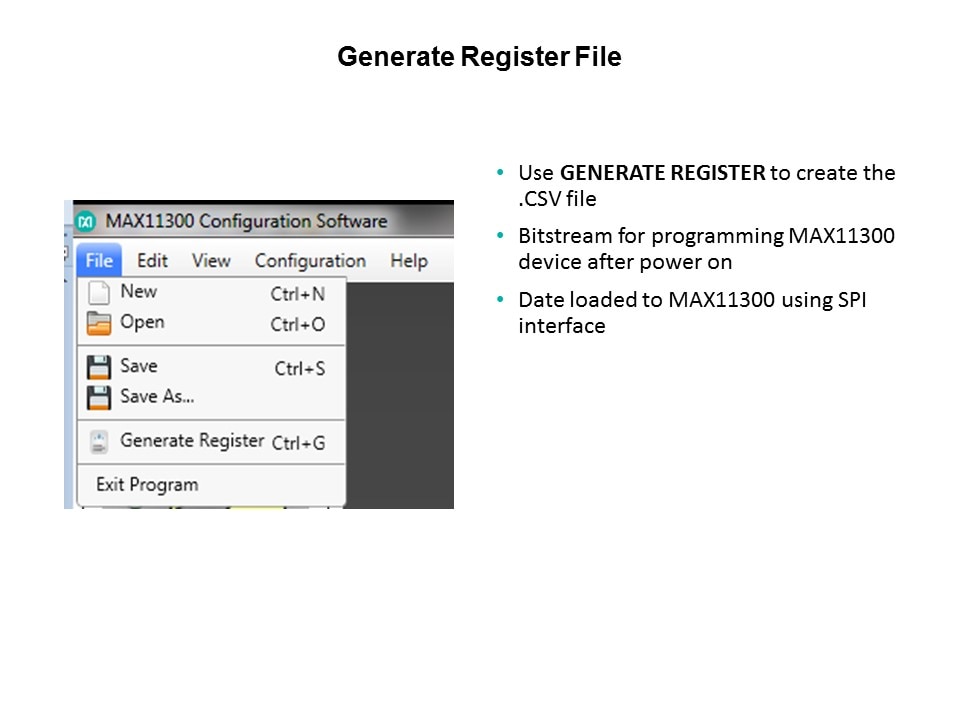

Once the designer is satisfied with the configuration, a .CSV file is generated with the registers addresses and corresponding register values - this becomes the programming bitstream to be downloaded to MAX11300 through the SPI interface. This .CSV file may be read with a GUI for downloading to target hardware, for example Munich GUI and MAX11300PMB1, or embedded within code for programming a PIXI device in the end application.
